CNC turning center TS400
2-axisA2-5VDI 30

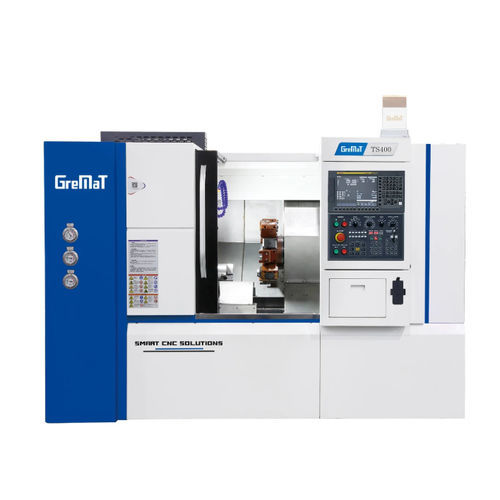

CNC turning center - TS400 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / VDI 30
CNC turning center - TS400 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-5 / VDI 30
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-5, VDI 30
Number of tool stations
12 tools
Drive system
belt drive
Applications
for complex parts
Performance
high-speed
Diameter

200 mm, 400 mm
(7.87 in, 15.75 in)

Spindle speed

5,000 rpm
(31,415.927 rad.min-1)

Maximum part length

320 mm
(13 in)

Axe X

250 mm
(10 in)

Axe Z

320 mm
(13 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Overall lenght

2,500 mm
(98 in)

Overall width

1,600 mm
(63 in)

Overall height

1,900 mm
(75 in)

Weight

2,600 kg
(5,732 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. TS are models are without a tailstock for a more compact and economic design to satisfy short or disc type workpiece. Capacity Chuck size - inch - 6 Spindle Spindle bore - mm - Φ55 Max. dia. of through-hole - mm - Φ46 Turret Max. speed of driving tool - rpm - 4000 , *6000 Others Slant bed degree - 35 ° Guideway type - LM Power capacity - kVA - 25
