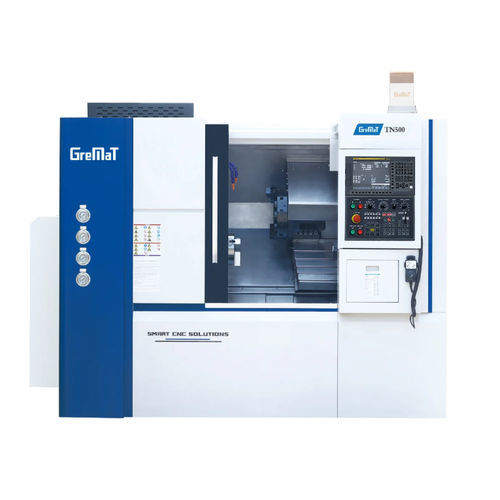

CNC turning center TN500 3-axisVDI 3012 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Spindle mount
- VDI 30
- Number of tool stations
- 12 tools
- Drive system
- direct-drive
- Diameter
280 mm, 540 mm
(11.02 in, 21.26 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum part length
500 mm
(20 in)- Axe X
260 mm
(10 in)- Axe Z
500 mm
(20 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
22 kW, 30 kW
(29.9 hp, 40.8 hp)- Overall lenght
2,750 mm
(108 in)- Overall width
1,950 mm
(77 in)- Overall height
2,200 mm
(87 in)- Weight
4,600 kg
(10,141 lb)
Description
TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation.
Capacity
Chuck size - inch - 8
Spindle
Spindle bore - mm - Φ66
Max. dia. of through-hole - mm - Φ52
Turret
Max. speed of driving tool - rpm - 4000 , *5000
Tailstock
Type of tailstock -
Hydraulic , * HPT
Taper of tailstock quill - MT4
Travel of tailstock - mm - 100-500
Others
Slant bed degree - 35 °
Guideway type - LM
Power capacity - kVA - 28
