CNC turning center TN600-3000
2-axisA2-812 tools

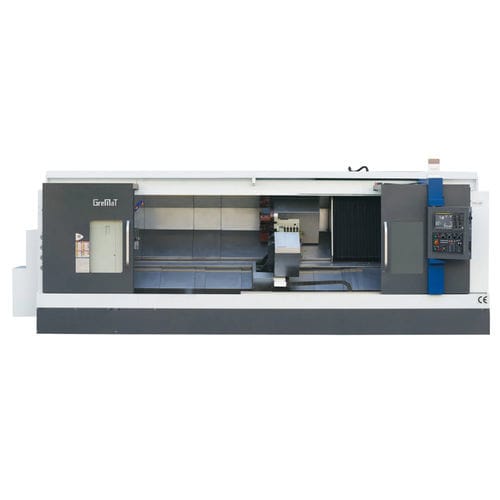

CNC turning center - TN600-3000 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-8 / 12 tools
CNC turning center - TN600-3000 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-8 / 12 tools
CNC turning center - TN600-3000 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-8 / 12 tools - image - 2
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-8
Number of tool stations
12 tools
Drive system
belt drive
Applications
for complex parts
Performance
high-speed
Diameter

360 mm, 620 mm
(14.17 in, 24.41 in)

Spindle speed

2,000 rpm, 3,000 rpm
(12,566.371 rad.min-1, 18,849.556 rad.min-1)

Maximum part length

3,000 mm
(118 in)

Axe X

Min.: 280 mm
(11 in)

Max.: 320 mm
(13 in)

Axe Z

3,300 mm
(130 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

18.5 kW, 22 kW, 37 kW, 45 kW
(25.2 hp, 29.9 hp, 50.3 hp, 61.2 hp)

Overall lenght

6,128 mm
(241 in)

Overall width

2,100 mm
(83 in)

Overall height

2,220 mm
(87 in)

Weight

10,000 kg
(22,046 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. Capacity Chuck size - inch - 10 ,* 12 Spindle Spindle bore - mm - Φ86 *Φ105 Max. dia. of through-hole - mm - Φ75*Φ91 Turret Tool shank size - BMT65 Max. speed of driving tool - rpm - 4000, *5000 Tailstock Type of tailstock - Hydraulic , *SPT Taper of tailstock quill - MT5 Travel of tailstock - mm - 3000 Others Slant bed degree - 35 ° Guideway type - LM Power capacity - kVA - 45
