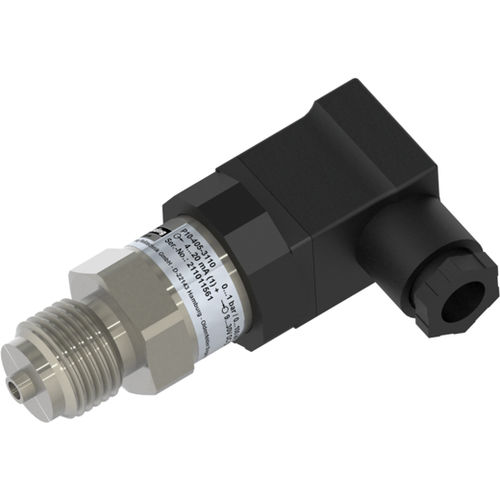

Relative pressure transmitter P10

absolutecapacitiveceramic

The  P10  pressure  sensor provides a cost-optimized alternative to capacitive sensors.  The  piezoresistive principle in combination with a ceramic  membrane  is  resistant  to  aggressive  and  abrasive  media.  Its  compact  housing  is  made  of  high-quality stainless steel  1.4404  and is  therefore suitable for almost all media. Our modular design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this data sheet. Features Dry ceramic sensor Cost optimized for standard applications Negative pressure measuring range: up to -1 bar Compact and rugged design Accuracy ≤ 0,5 % Analog output: 4…20 mA, 2-wires         0…10 V, 3-wires         0...5 V, 3-wires        0,5...4,5 V, ratiometric Applications: Liquid media Vacuum applications Technical data: - Negative pressure measuring range: up to -1 bar Analog output - 4…20 mA, 2-wires - 0…10 V, 3-wires - 0…5 V, 3-wires - 0,5…4,5 V, 3-wires, ratiometric Power supply - 20 mA output: 9…30 V DC - 5 V output: 9…30 V DC - 10 V output: 15…30 V DC - 0,5…4,5 V output: 5 V DC Accuracy - ≤ ± 0,5 % FS @ 25 °C Response time - 50 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,03 % FS / Kelvin - Span: ≤ ± 0,02 % FS / Kelvin Span: ≤ ± 0,02 % FS / Kelvin Surrounding temperature - -25…80 °C Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function Electromagnetic compatibility - Interference emissions and immunity acc. to EN 61326
