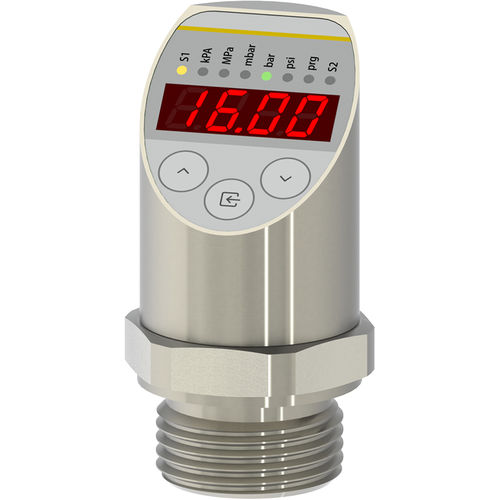

Pressure switch with display PM40

flush diaphragmcapacitiverelative

The model PM40 is an easy-to-use pressure switch with a digital display and the possibility to adjust the sensor individually on site. The high overload capability compensates for pressure peaks in fast-closing systems such as drinking water applications with solenoid valves. Front-flush process connections reliably prevent clogging, even with viscous media. The large, brightly illuminated display can still be easily read from a great distance and therefore allows for a quick assessment of the process pressure. The upper part of the sensor can be rotated, in addition the display can be rotated via software for horizontal installation. The analog output with 2 adjustable switching outputs extends the range of applications. For our OEM customers, we offer the possibility of individual pre-setting of the PM40 for the respective application. Our modular design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this datasheet. Features 4 digit super bright LED display Top part rotatable for easy mounting Switchable digital display for overhead mounting Adjustable turndown without loss of accuracy 1:5 Dry capacitive pure ceramic measuring cell High overload capability Front flush process connection Smallest measuring range: 0…40 mbar Largest measuring range: 0…40 bar Negative pressure measuring range: up to -1 bar Adjustable on site Accuracy ≤ 0,3%, also for turndown up to 1:5 2 Switching outputs DC PNP, max. 100mA Analog output: 4…20 mA, 3-wires Applications: Gaseous media Pump applications Hygiene applications Viscous media Abrasive media Aggressive media Hydrogen
