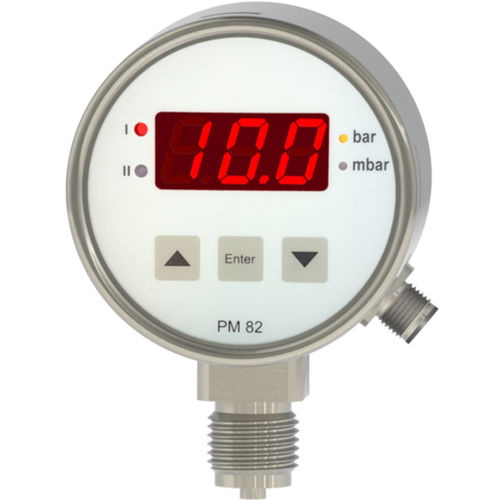

Pressure gauge with LED display PM82

stainless steel4-20 mAanalog output

The PM82 digital pressure gauge features a large, bright display.  The digital contact gauge can still be easily read from a distance and therefore allows for a quick assessment of the process pressure. An analog output and 2 switch outputs widen the range of  applications. The piezoresistive measuring principle in combination with a ceramic membrane is resistant to aggressive and  abrasive  media. The  process  connection is made of high-quality stainless steel 1.4404 and is therefore suitable for almost all media.  All wetted components are food safe, making the unit ideal for use in  beverage and process water  applications.  Additional  process  connections  and  measuring  ranges  can  also  be  found  in  the PM82-3 and PM82-4 models. Features Recording min./max. pressure Dry piezoresistive ceramic sensor Negative pressure measuring range: up to -1 bar Accuracy ≤ 0,5% 2 contact outputs DC PNP, max. 200mA Applications: Beverage industry Abrasive media Aggressive media Technical data: - Negative pressure measuring range: up to -1 bar - 10 V output: 16…30 V DC Accuracy - ≤ ± 0,5 % FS @ 25 °C Long term stability - ≤ ± 0,5 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,03 % FS / Kelvin - Span: ≤ ± 0,02 % FS / Kelvin Medium temperature - -25…100 °C
