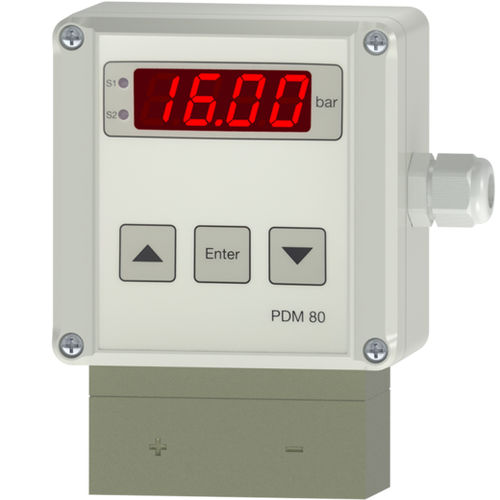

Differential pressure transmitter PDM80-2

capacitiveanalogfor liquids

Model PDM80-2 features a large, bright display. The  transmitter can still be easily read from a distance and therefore allows a quick assessment of the process pressure. An analog output and 2 relays widen the range of applications.  The  electrical  connection  is done via an integrated terminal strip,  the PG11 cable gland provides IP65 dust and water protection.  The capacitive measuring principle in combination with a ceramic membrane is resistant to aggressive and abrasive media.  The  process  connection  is made of high-quality  stainless  steel  1.4404  and is therefore suitable for almost all media. Features 4 digit LED display 2 relays 250V AC / 125V DC Dry capacitive ceramic sensor Accuracy ≤ 0,2% Applications: Hygiene applications Viscous and pasty media Aggressive media Pressure superimposed level measurement Technical data: Analog output - 4…20 mA, 3-wires - 0…20 mA, 3-wires - 0…10 V, 3-wires Power supply - 20 mA output: 19…30 V DC - 10 V output: 19…30 V DC Accuracy - ≤ ± 0,2 % FS @ 25 °C Long term stability - ≤ ± 0,15 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,02 % FS / Kelvin - Span: ≤ ± 0,02 % FS / Kelvin Medium temperature - -25…100 °C (125°C < 0,5 h) Surrounding temperature - 0…60 °C Storage temperature - -40…60 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function Electromagnetic compatibility - Interference emissions and immunity acc. to EN 61326 Wetted materials - - Sensor: Ceramic Al2O3 - Sensor seal: FPM (Viton), NBR, EPDM, FFKM (Chemraz/Kalrez)
