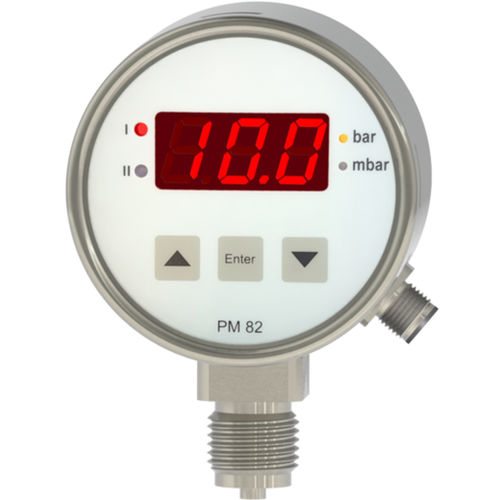

Direct-reading pressure gauge PM82-4

stainless steel4-20 mAanalog output

The PM82-4 digital pressure gauge extends the standard model PM82 with a capacitive measuring cell.  The result is a finer measuring range with higher overload capability.  The  HD  version  in  particular is suitable for pressure peaks in fast-closing systems such as drinking water applications.  Its  large  and  bright  display  can  still  be  easily  read  from  a  distance  and  therefore  allows  for  a quick  assessment  of the  process pressure.  The analog output with  2  adjustable  switching outputs extends the range of applications.  Additional  process  connections  and  measuring ranges are offered in model PM82-3.  Our  modular design concept provides a wide variety of products. Feel free to contact us if you need acustomization that is not listed in this datasheet. Features 3 digit LED display Dry capacitive caramic sensor High overload capability Negative pressure measuring range: up to -25 bar Recording min./max. pressure Accuracy ≤ 0,5% 2 contact outputs DC PNP, max. 200mA Applications: Abrasive media Aggressive media Technical data: - Negative pressure measuring range: up to -1 bar Power supply - 20 mA output: 10…30 V DC - 10 V output: 15…30 V DC Accuracy - ≤ ± 0,5 % FS @ 25 °C Long term stability - ≤ ± 0,5 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,03 % FS / Kelvin - Span: ≤ ± 0,02 % FS / Kelvin Medium temperature - -25…100 °C Surrounding temperature - -25…80 °C Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function
