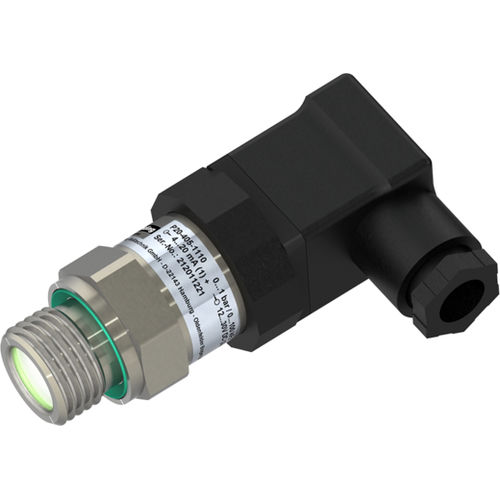

Relative pressure transmitter P20

capacitiveceramicanalog

The  P20  pressure  transmitter model is designed for use in applications where media tend to deposit and clog the sensor.  A  compact  front-flush process connection prevents hidden edges and drill holes,  in combination with a resistant ceramic sensor,  optimal cleaning and maintenance can be ensured.  The  capacitive  measuring  principle  enables  a  very  accurate and long-term stable measurement, even at lowest pressures and high overload resistance. The process connection is made of high-quality  stainless  steel  1.4404  and  is  therefore  suitable  for  almost  all  media. Our modular design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this datasheet. Features Front flush process connection High overload capability Dry ceramic sensor Accuracy ≤ 0,2 % Negative pressure measuring range: up to -1 bar Analog output: 4…20 mA, 2-wires       0…10 V, 3-wires Optional for media up to 125 °C Applications: Viscous and pasty media Hygiene applications Aggressive Media Technical data: - Negative pressure measuring range: up to -1 bar Analog output - 4…20 mA, 2-wires - 0…10 V, 3-wires Power supply - 20 mA output: 9…30 V DC Power supply - 10 V output: 15…30 V DC Accuracy - ≤ ± 0,2 % FS @ 25 °C - ≤ ± 0,5 % FS @ 25°C < 0…100 mbar Long term stability - ≤ ± 0,2 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,01 % FS / Kelvin - Span: ≤ ± 0,01 % FS / Kelvin Medium temperature - -25…100 °C
