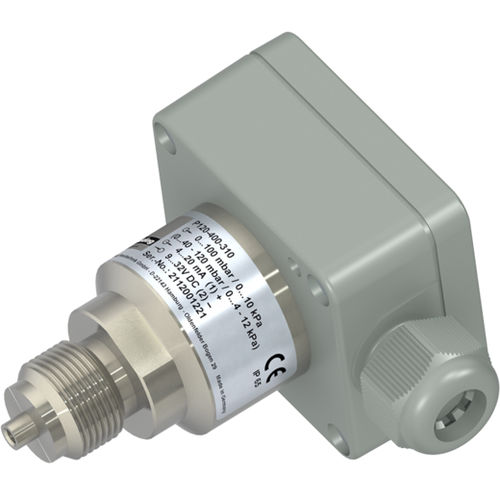

Relative pressure sensor P120

absolutecapacitiveceramic

The  P120  sensor  is  characterized by its on-site adjustment capability.  The  measuring  range can be  fine-tuned subsequently and the cable is connected directly to the integrated clamps. The analog output can be switched from 4-20 mA to 0-20 mA or reconnected to 0-10 V at any time. The ceramic sensor element is resistant to aggressive and abrasive media.  The capacitive measuring principle enables a very accurate and long term stable measurement even at lowest pressures and high overload resistance. The process connection is made of high quality stainless steel 1.4404  and is therefore suitable  for  almost  all  media.  The upper housing part is optionally available in polyamide for cost-sensitive areas,  or stainless steel for harsh surroundings.  Our  modular  design  concept provides a wide variety of products.  Feel  free  to  contact  us if you need a customization that is not listed in this data sheet. Features Dry capacitive ceramic sensor Negative pressure measuring range: up to -1 bar Accuracy ≤ 0,2% High overload capability Adjustable range (Turndown) 3:1 Rugged design Adjustable on site DNV certified Analog output: 4…20 mA, 2-wires         0…20 mA, 3-wires         0...10 V, 3-wires Applications: Gaseous media Liquid media Abrasive media Aggressive media Maritime applications
