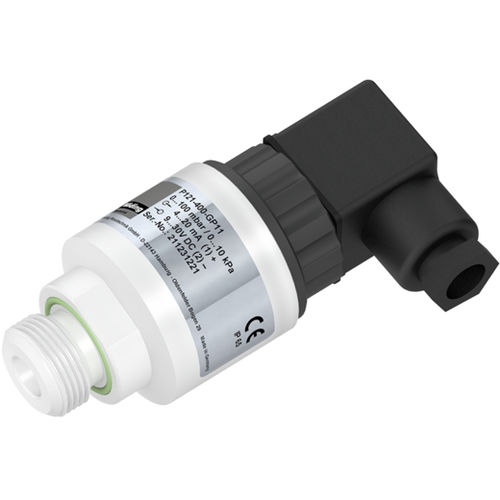

Relative pressure sensor P121 PVDF

absolutecapacitiveceramic

The plastic version of the P121 pressure transmitter is particularly suitable for media that lead to corrosion of stainless steel and thus to sensor failure.  The  capacitive  measuring  principle  enables  a  very  accurate  and  long-term  stable  measurement,  even  at  lowest  pressures  and  high  overload  resistance. Our modular design concept provides a wide variety of products.  Feel free to contact us if you need a customization that is not listed in this data sheet. Features PVDF (Polyvinylidene fluoride) Chlorine and salt water resistant Negative pressure measuring range: up to -1 bar Accuracy ≤ 0,2% High overload capability Analog output: 4…20 mA, 2-wires         0…10 V, 3-wires Applications: Liquid media Technical data: - Negative pressure measuring range: up to -1 bar Analog output - 4…20 mA, 2-wires - 0…10 V, 3-wires Power supply - 20 mA output: 9…30 V DC - 10 V output: 15…30 V DC Accuracy - ≤ ± 0,2 % FS @ 25 °C - ≤ ± 0,5 % FS @ 25°C ≤ 60 mbar Long term stability - ≤ ± 0,15 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,015 % FS / Kelvin - Span: ≤ ± 0,01 % FS / Kelvin Medium temperature - -40…100 °C (125 °C < 0,5 h) Surrounding temperature - -25…80 °C Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function Electromagnetic compatibility - Interference emissions and immunity acc. to EN 61326
