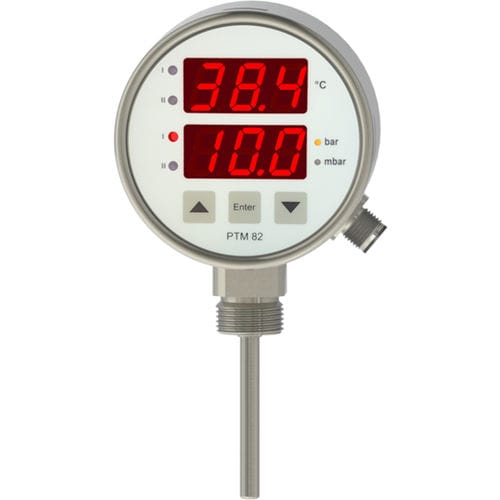

Pressure gauge with LED display PTM82

stainless steel4-20 mAanalog output

The model PTM82 combines pressure and temperature measurement with a large, bright display. The digital contact gauge can still be easily read from a distance and therefore allows for a quick assessment of the process parameters. An analog output and two switch outputs widen the range of applications.  The  capacitive  measuring  principle in combination with a ceramic membrane is resistant to aggressive and abrasive media.  The process connection is made of high-quality stainless steel  1.4404 and is therefore suitable for almost all media.  All  wetted  components  are  food safe, making the unit ideal for use in beverage and process water applications. Features 3 digit LED display Recording min./max. pressure Dry capacitive ceramic sensor Negative pressure measuring range: up to -1 bar Accuracy ≤ 0,5% 2 contact outputs DC PNP, max. 200mA Applications: Industrial water applications Abrasive media Aggressive media Technical data: - Negative pressure measuring range: up to -1 bar Power supply - 20 mA Output: 10…30 V DC - 10 V Output: 16…30 V DC Accuracy - Pressure: ≤ ± 0,5 % FS @ 25 °C - Temperature: ≤ ± 0,3 % FS @ 25 °C +0,3 °C +0,005 °C x t (Pt1000 Kl. B) Long term stability - ≤ ± 0,5 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Pressure zero: ≤ ± 0,03 % FS / Kelvin - Pressure span: ≤ ± 0,02 % FS / Kelvin - Temperature measurement: ≤ ± 0,02 % FS / Kelvin Medium temperature - -25…100 °C Surrounding temperature - -25…80 °C Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function
