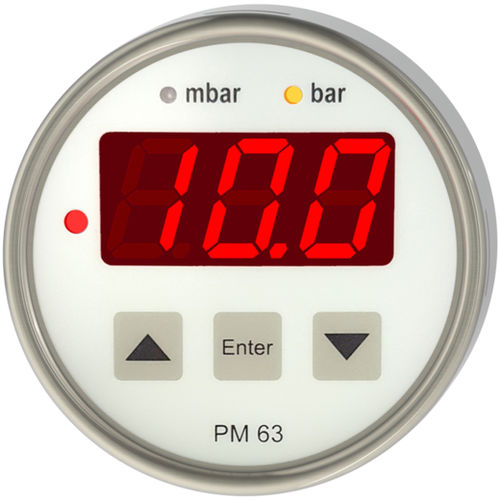

Pressure gauge with LED display PM63

stainless steel4-20 mAanalog output

The  PM63  digital pressure gauge features a large, bright display. The digital contact gauge can still be easily read from a distance and therefore allows a quick assessment of the process pressure.  An analog  output  and 2 relays widen  the  range  of  applications. The  piezoresive  measuring principle in combination with a ceramic membrane is resistant to aggressive and abrasive media. The process connection is made of high-quality stainless  steel  1.4404  and  is  therefore  suitable  for  almost  all  media.  All  wetted  components  are  food  safe,  making  the  unit  ideal  for  use in beverage and process water applications. Features 3 digit LED display Recording min./max. pressure Dry piezoresistive ceramic sensor Negative pressure measuring range: up to -1 bar Accuracy ≤ 0,5% 1 contact output DC PNP, max. 200mA Applications: Beverage industry Abrasive media Aggressive media Technical data: - Negative pressure measuring range: up to -1 bar Power supply - 20 mA output: 9…30 V DC - 10 V output: 16…30 V DC Accuracy - ≤ ± 0,5 % FS @ 25 °C Long term stability - ≤ ± 0,5 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,03 % FS / Kelvin - Span: ≤ ± 0,02 % FS / Kelvin Medium temperature - -25…100 °C Surrounding temperature - -25…80 °C Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function Electromagnetic compatibility - Interference emissions and immunity acc. to EN 61326 - Sensor: Ceramic Al2O3 - Sensor seal: FPM (Viton), NBR, EPDM, FFKM (Chemraz / Kalrez)
