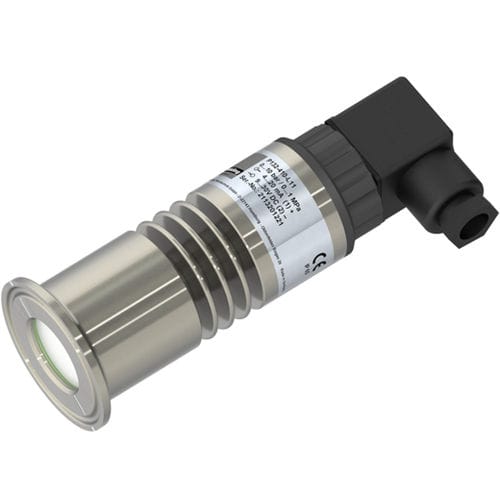

Relative pressure sensor P132

absolutecapacitiveceramic

The  P132  sensor  features large process connections and a front-flush measuring sensor.  Clogging  of the membrane is prevented most effectively and can be easily cleaned if necessary. The integrated cooling section reliably dissipates the heat from the medium temperature in order to protect the electronics and increase the service life.  The  ceramic  sensor element is resistant to aggressive and abrasive media.  The  capacitive measuring principle  enables  a  very  accurate  and  long  term  stable   measurement,  even  at  lowest   pressures  and   high  overload  resistance.  The  process connection  is  made  of  high-quality  stainless  steel  1.4404  and  is  therefore suitable for almost all media.  Our  modular  design  concept  provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this datasheet. Features Front flush dry ceramic sensor Negative pressure measuring range: up to -1 bar Accuracy ≤ 0,2% High overload capability Integrated cooling section Permanent 125°C medium temperature Analog output: 4…20 mA, 2-wires         0…10 V, 3-wires Applications: High temperature applications Viscous and pasty media Hygiene applications Abrasive media Aggressive media
