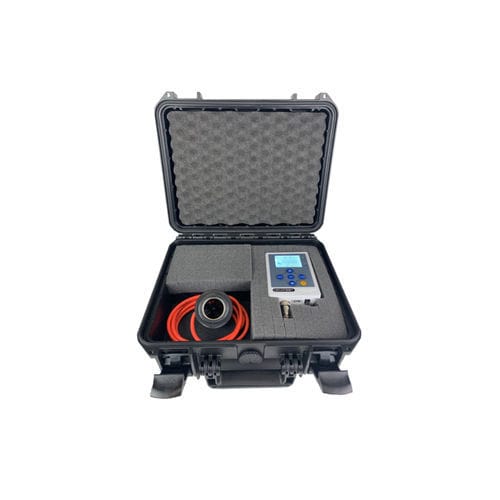

Impeller flow sensor NOVA 2G

volumefor liquidsdigital output

The NOVA-2G digital flow-meter allows to measure the flow rate of fluid passing through a pipeline, and to read this reading comfortably directly on the display of the acquisition unit or on the display of NOVALog. The operating principle is based on causing a variation in the speed of the fluid flowing between two successive sections of the pipeline examined, by interposing a pipe with a smaller section. Inside this extension there is an impeller valve, through which the speed of the fluid and consequently the flow rate passing through is calculated. The digital flow-meter displays the accumulated flow and the instantaneous flow rate. • Measure the flow rate in the pressure pipes; • Evaluate the volume increase of the flexible tanks during the load tests. • Measurement range: 2-200 l / min; • Connectors: 1 and ½ ”male connection; • Output: 4-20 mA or pulse output; • Accuracy: +/- 3%; • Material: Sensor body in plastic material; • Operative temperature: -20 … + 70 ° C; • Adapter: UNI45.
