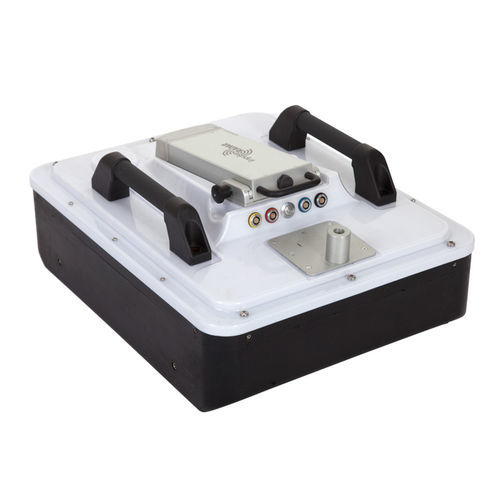

Radar field-generating antenna CrossOver

IP65wide-bandmulti-band

Overview
The CrossOver series by ImpulseRadar is a family of professional Ground Penetrating Radar (GPR) systems designed for subsurface inspection and geo-surveys. Available in three models (CO4080, CO1760, CO730), the series covers six frequencies across the 70–800 MHz range. Each system integrates a true dual-channel CrossOver antenna with built-in control electronics and an internal GPS module. Real-Time Sampling (RTS) technology enhances depth penetration and bandwidth beyond conventional GPR designs. Systems support wireless control via an Android tablet and are powered by a 12V Li-Ion battery (typical autonomy up to 9 hours, depending on mode). Units can be deployed on dedicated push carts, pulled with a harness, carried by hand or transported by vehicle at survey speeds.

CO4080
Compact model for high-resolution inspection of urban infrastructure, archaeological surveys, utility locating, and road pavement assessment.

• Centre freq.: 400 MHz (LF) + 800 MHz (HF)
• Time window: 388 ns (LF) · 194 ns (HF)
• Dimensions: 444×355×194 mm
• Weight: 6.35 kg
• Autonomy / Operating time: 7 h (dual) · 9 h (single)
• Power consumption: 1.3 A (dual) · 1.0 A (single)
• Cart folded: 870×540×370 mm · Cart in use: 1010×540×1030 mm
• Cart weight: 12.8 kg · Ant.+display: 20 kg
• Wheels: 4 × Ø315 mm

CO1760
Mid-range model balancing investigation depth and resolution. Suitable for road & bridge inspection, geological surveys, and versatile frequency applications.

• Centre freq.: 170 MHz (LF) + 600 MHz (HF)
• Time window: 1050 ns (LF) · 263 ns (HF)
• Dimensions: 695×445×205 mm
• Weight: 9.5 kg
• Autonomy / Operating time: 7 h (dual) · 9 h (single)
• Power consumption: 1.3 A (dual) · 1.0 A (single)
• Cart folded: 920×640×390 mm · Cart in use: 1100×640×1030 mm
• Cart weight: 15.3 kg · Ant.+display: 25.7 kg
• Wheels: 4 × Ø315 mm

CO730
Largest model, engineered to maximise depth penetration. Ideal for deep geological surveys, mining prospecting, ice/snow inspection, and environmental studies.

• Centre freq.: 70 MHz (LF) + 300 MHz (HF)
• Time window: 2500 ns (LF) · 625 ns (HF)
• Dimensions: 960×760×270 mm
• Weight: 20.2 kg
• Autonomy / Operating time: 6 h (dual) · 8 h (single)
• Power consumption: 1.5 A (dual) · 1.2 A (single)
• Cart: — (pulling kit available)

Common technical features
Key parameters shared by CO4080, CO1760 and CO730:

• Antenna type: CrossOver dual-channel
• Channel activation modes: CH-1 & CH-2 (both) · CH-1 (LF) · CH-2 (HF)
• SNR: >100 dB
• Effective bits: >16 bit
• Scans/s: >800
• Survey speed: >130 km/h @ 5 cm
• Bandwidth: >120% fractional, −10 dB
• Acquisition modes: Wheel · Time · Manual
• Positioning: Wheel encoder + internal DGPS + external GPS (NMEA 0183)
• Power supply: 12V rechargeable Li-Ion · external 12V DC (optional)
• Operating temperature range: −20° to +50°C
• Environmental rating: IP65
• Certifications: CE · FCC · IC
• Recommended tablet: Samsung Galaxy Tab Active Pro or equivalent · Android ≥ 5.0 · 720×1280 px · 2.7 GB RAM

Accessories

• Pulling Kit: rods, chest harness and waist belt designed for ergonomic pulling deployment in confined or less accessible areas.
• Push Cart: foldable push cart for efficient 2D GPR data collection; available in sizes for CO4080 and CO1760; compatible with external RTK GPS or Total Station.
• Measuring Wheel: Ø250 mm odometric wheel in printed plastics, compatible with all CrossOver models; odometer and cable housed internally.
• GPS Mounting Kit: mounting accessories and poles for external GPS receiver on push-cart or antenna unit.
• Skid Plate: protective skid plates for cart and pulling configurations; consumable/spare parts.

Technical specifications

• Series name: CrossOver series (ImpulseRadar)
• Available models: CO4080, CO1760, CO730
• Frequency coverage: six separate frequencies spanning 70–800 MHz depending on model
• RTS: Real-Time Sampling technology for extended depth and bandwidth
• Internal GPS: integrated module for positioning; supports external GPS via NMEA 0183
• Data acquisition: wheel/time/manual modes; >800 scans/s
• Power and autonomy: 12V Li-Ion battery; operating times vary by model and mode (single/dual)
• Mechanical: model-specific dimensions and weights detailed per model above
• Environmental & certifications: IP65 protection; CE, FCC, IC certified
• Typical applications: infrastructure inspection, archaeology, utility locating, geological & mining surveys, ice/snow studies, environmental monitoring
