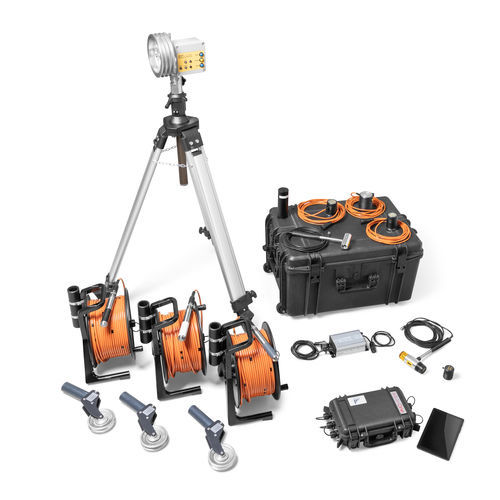

Cross-hole testing device ALL-IN-ONE

automaticmaterialsfor building materials

Non-destructive testing instrument All-in One: a single acquisition unit that allows, through the purchase of several specific “Kit”, to perform sonic and ultrasonic tests for the characterization in situ and in the laboratory of materials such as concrete, masonry and stone materials, “cross hole” and “PIT” (Pile Integrity Test) in piles and diaphragm foundations. KIT CONTACT / KIT MCHA / KIT PIT All-in One system is a rugged and reliable equipment with various dedicated piezoelectric sensors and probes. All-in One is characterized by an A/D board multichannel and selectable sampling rates from 10KHz to 6.25MHz (up to 12.5MHz single channel). All acquired signals are displayed, computed and memorized directly on tablet pre-installed software. Connection between All-in One system and tablet via Wifi. PRODUCT PLUS – 3 probes system – Drastic reduction of acquisition time survey – Smart probes including signal generation and active pre-amplification – Distance between pipes up to 3m – Acquisition unit with high dynamic range and low electronic noise – Ultrasonic contact probes (55- 20KHZ) triggered hammer, dedicated software – Rugged and reliable equipment – Pulse echo & low strain method, elaboration software included – Fully respects main international standard guidelines APPLICATIONS – Verification of concrete elements on-site – Analysis of diaphragms and foundation piles – Seismic cross-hole test
