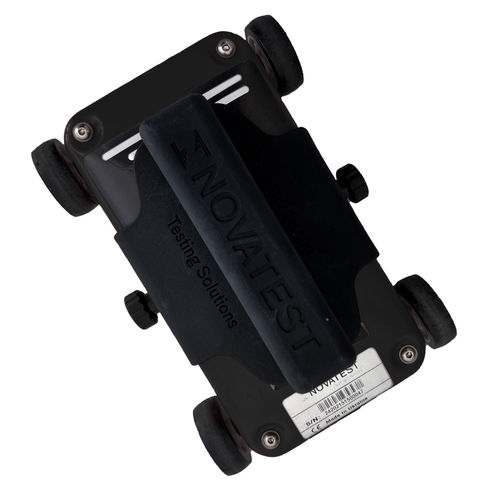

3D ground penetrating radar SUBvysor 1500

compacthigh-speedlightweight

Overview
The GPR SUBvysor 1500 is suitable for concrete structure inspection and searching of both metallic and dielectric objects (cracks, voids, rebars, etc.).

Detection capabilities
With the GPR SUBvysor 1500 you can quickly locate the position and depth of metallic and non-metallic objects:

• Metal utilities, including pipes and cables
• Non-metallic pipes, including PVC and asbestos cement
• Positions of rebars
• Moisture zones
• Subsurface objects: voids, cracks, heterogeneous inclusions

Basic applications

• Concrete and brick structure inspection
• Cable and pipes detection
• Examination of engineering construction (building walls and foundations, etc.)
• Search for reinforcement rods in building constructions
• Search for hidden and immured objects
• Measurement of structural element thicknesses

Features

• Real time signal pre-processing (online filtering)
• Auto-calibrated online filters
• Wide range of post-processing tools
• Increased dynamic range due to digital trace-stacking
• Innovative “Telbin” technology to achieve high signal-to-noise ratio
• Connection to laptop: USB
• No additional control unit required; any Windows-based laptop can be used
• Antenna case: IP65 compliant
• No internal battery required; powered from computer’s USB port
• Low power consumption
• Built-in inclinometer

Accessories / Kit includes

• GPR SUBvysor 1500 MHz antenna with handle and telescopic rod, USB data cable for PC/tablet connection, and integrated encoder
• GPR Logger software
• 3D Mapper software with data export module in .dxf format (optional .kmz)
• User manual
• Backpack
• Portable laptop shelf (foldable, attachable to the backpack for single-operator laptop use)

Notes

• PC/Tablet is not included
• All GPR SUBvysor antennas are compatible with Windows operating systems

Available documentation

• Technical sheet (EN)
• Mapper 3D User Manual (EN)
• GPR Logger User Manual (EN)

Technical specifications

• Antenna frequency: 1500 MHz
• Analogue-to-Digital Converter range: 18 bit
• Dynamic range: not less than 135 dB
• Data acquisition rate: up to 150 traces per second
• Survey window: 8, 12, 16, 20 nsec
• Maximum number of samples per trace: 1,000
• Trace stacking number: up to 300
• Depth of sounding: up to 0.5 m (determined by soil properties)
• Spatial resolution: <0.03 m
• Trigger mode: single, internal, external
• File size of a single profile: up to 1,000,000 traces
• Interface: USB2
• Built-in inclinometer
• Dimensions (L x W x H): 190 x 40 x 40 mm
• Weight of antenna: 0.6 kg
• Operating temperature range: -20°C to 40°C
• Environmental rating: IP65
• Continuous operation time: until the laptop runs out
