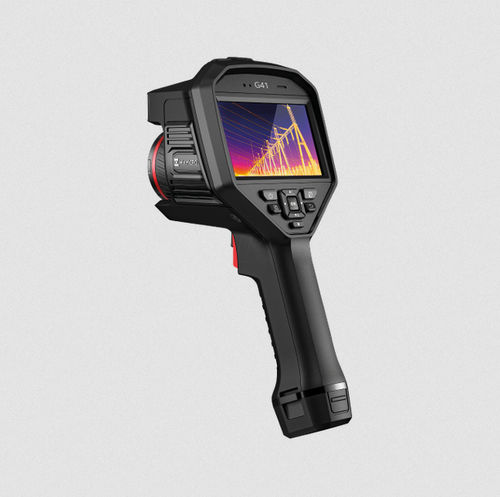

Thermal imager HIKMICRO G41

digitalHVACfor building diagnostics

Overview
The HIKMICRO G41 is a professional handheld thermal imager for building diagnostics, moisture detection, thermal-bridge identification and industrial inspection. Key features include a 480×360 IR VOx detector (172,800 pixels), NETD <35 mK, SuperIR super-resolution to 960×720, radiometric JPEG output, integrated laser distance meter, GPS and compass, IP54 protection and Wi‑Fi/USB connectivity.

Detector & Imaging
The instrument integrates a 480×360 vanadium oxide (VOx) detector with 17 µm pitch, covering the 7.5–14 µm band and offering thermal sensitivity <35 mK (25°C, F#=1.0). Proprietary SuperIR processes raise displayed resolution to 960×720 while preserving radiometric accuracy. Captured JPEG images are fully radiometric for post-processing and reporting.

Measurement ranges and accuracy
The G41 provides two selectable measurement ranges optimized for different use cases:

• Standard range: −20°C to +150°C — accuracy ±2°C (−20 to 0°C), ±1°C (0 to 100°C), ±1% (100 to 150°C). Recommended for building diagnostics and energy audits.
• Extended range: 0°C to +650°C — accuracy ±2°C (0 to 100°C), ±2% (100 to 650°C). Intended for high-temperature industrial inspection.

Analysis tools (real-time)

• Centre spot, hot spot, cold spot
• Delta T and up to 10 user-defined spots
• 1 line, 5 rectangles and 5 circles with live temperature readout
• Configurable high/low/interval alarms to flag anomalies

Autofocus & Distance
Five-mode focus system with ~2 s lock time and 0.3 m minimum focus distance:

• Laser-Assisted AF — for low thermal contrast surfaces
• Continuous AF — maintains focus while moving
• Single AF — on-demand precise focus
• Manual Focus — for extreme distances or complex scenes
• Touch AF — tap the screen to focus on an anomaly

Geolocation & Field Documentation
Integrated laser distance meter (50 m indoor / 10 m outdoor, Class II, 635 nm) for direct distance and area measurement. Each image is geotagged with GPS coordinates and compass heading. On-site documentation supports voice annotations (up to 60 s), text notes (up to 200 characters) and QR code scanning for streamlined reporting.

Reporting, Connectivity & Software

• Wi‑Fi 802.11 b/g/n (2.4 & 5 GHz) for wireless image transfer
• Radiometric UVC video streaming over USB Type‑C and Wi‑Fi
• HDMI output for on-site presentation
• Bluetooth 4.2 for auxiliary devices
• HIKMICRO Analyzer (Windows) for professional post-processing and PDF report generation
• HIKMICRO Viewer mobile app for image transfer and preview

Ruggedness & Power
Built for field use: IP54 protection, certified 2 m drop resistance (IEC 60068-2-31), vibration resistance 2 g (IEC 60068-2-6), shock resistance 25 g (IEC 60068-2-27). Operating range −20°C to +50°C. Hot-swappable Li‑Ion battery system supports continuous operation; standard kit includes 3 batteries (~4 h each) and a dual-slot charger for over 12 hours total.

Applications
Typical applications include building diagnostics (thermal bridges, moisture, insulation), energy audits, low-temperature systems (radiant floors), roof and facade inspection, electrical cabinet and transformer surveys, mechanical maintenance (bearings, motors), HVAC and plant inspection, manufacturing quality control, public safety, oil & gas inspections and R&D thermal testing.

Kit & Additional notes
Radiometric imaging suitable for building pathology and industrial inspection professionals. Supports professional workflows with bundled software. Rental option available.

Technical specifications

• Model: HIKMICRO G41
• Detector: 480×360 VOx, 17 µm pitch
• NETD: <35 mK (25°C, F#=1.0)
• Displayed resolution (SuperIR): 960×720
• Measurement ranges: −20°C to +150°C (standard); 0°C to +650°C (extended)
• Accuracy: ±2°C (−20 to 0°C); ±1°C (0 to 100°C); ±1% (100–150°C); extended: ±2°C (0–100°C); ±2% (100–650°C)
• Autofocus modes: Laser-Assisted AF, Continuous AF, Single AF, Manual Focus, Touch AF
• Minimum focus distance: 0.3 m
• Laser distance meter: 50 m indoor / 10 m outdoor (Class II, 635 nm)
• Geotagging: GPS coordinates and compass heading
• On-site notes: Voice annotations (up to 60 s), text notes (up to 200 characters), QR scanning
• Connectivity: Wi‑Fi 2.4/5 GHz, USB Type‑C (radiometric UVC), HDMI, Bluetooth 4.2
• Software: HIKMICRO Analyzer (Windows), HIKMICRO Viewer (mobile)
• Ruggedness: IP54, 2 m drop, vibration 2 g, shock 25 g
• Operating temperature: −20°C to +50°C
• Power: Hot-swappable Li‑Ion batteries; standard kit includes 3 batteries (~4 h each) and dual-slot charger
• Image format: Fully radiometric JPEG
