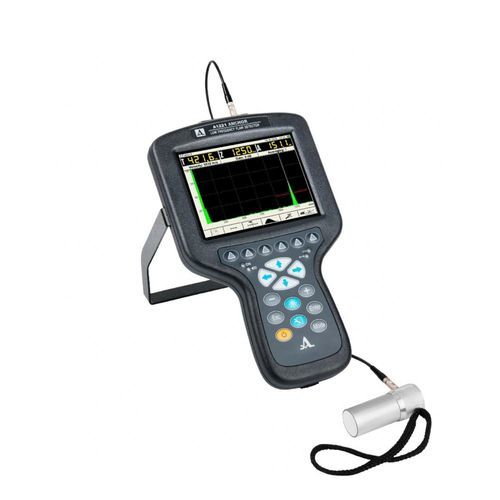

Ultrasonic NDT inspection device A1221 ANCHOR

Product Overview: A1221 ANCHOR is an ultrasonic instrument for in-situ evaluation of embedded metallic elements by means of low-frequency ultrasonic waves. Applications: - The main application field of A1221 ANCHOR is the non-destructive testing of anchor bolts and similar structural elements. - Following evaluations can be performed by placing ultrasonic transducer on the free outer end of the bolt: - Detection of anchor breaks - Residual length/fraction assessment - Adhesion quality assessment Application Features: - Assessable bolt/rebar diameter: 20-40 millimeters - Not grouted assessment length: up to 8 meters - Minimal assessment length: 0.3 meter - Assessable grouting depth in concrete: up to 1 meter - Assessable grouting depth in rock: up to 4 meters Technical Features: - Operating frequency range, kHz: 25-250 - Maximal data acquisition length, μs: 4000 - Assessment length, m: 0.5-3 - Assessment length of embedded rods, m: up to 1 - Assessable rod diameter range, mm: 20-40 - Material velocity range, m/s: 500-15000 - Transmitter output voltage, V: ±20, ±100, ±200 - Transmitter pulse form: Bipolar meander, 0.5÷5.0 periods - Pulse repetition rate, Hz: 1-45 - Gain setup range, dB: 0-100, step 1 - Number of the programmable points of DAC function: 24 - Dynamic range of DAC function, dB: 30 - Power supply: Built-in battery - Operation time, h: 14 - Battery charging time, h: 3 - Display type: TFT (640 х 480) - Electronic unit dimensions, mm: 260×156×43 - Electronic unit weight, kg: 0.8 Operational Conditions: - Operating temperature range, ºC: from -20 to +45 - Relative air humidity at +35°С, %, max: 95 Accessories (Delivery Kit): - No.1 A1221 Anchor electronic unit - No.1 Power adapter AC 80-264 / VDC 15V - No.1 USB 2.0 Cable USB-A to USB Micro-B - No.1 Lem00 to Lemo0 cable, 2.25m - No.1 Carrying map case - No.1 Soft Cover - No.1 Instrument support - No.1 Hard shell case - No.1 Low frequency piezoelectric transducer S0205, 25 Khz - No.1 Low frequency piezoelectric transducer S0206, 50 KHz (optional) - No.1 Low frequency piezoelectric transducer S0208, 100 KHz (optional) - No.1 Rexilite test block - No.1 Ultrasonic coupling 80 ml
