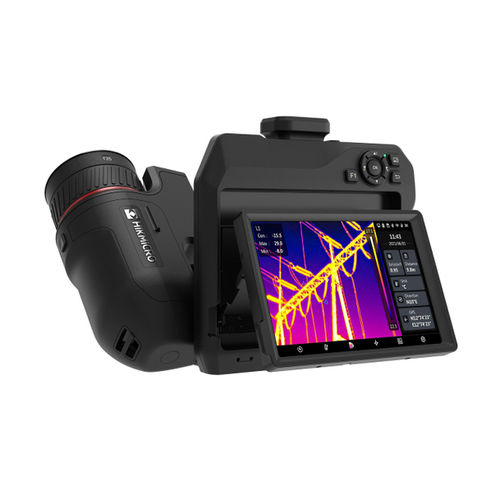

HIKMICRO SP Series — Professional Handheld Thermal Camera
The HIKMICRO SP Series is a professional handheld thermal camera family designed for technicians, inspectors and maintenance engineers working in industrial, energy and construction environments. Four models across two IR detector tiers (SP40 / SP40H and SP60 / SP60H) use SuperIR processing to provide enhanced radiometric image resolution for diagnostic reporting.

Key product highlights

• Interchangeable optics system (tele to wide) to adapt field of view and spatial resolution to tasks from long-distance high-voltage inspection to close-up PCB analysis.
• Laser-assisted autofocus achieving precise focus in about one second even at low thermal contrast; multiple focus modes available.
• 5" LCD touchscreen with 90° rotation and 180° rotating lens for angled inspections in confined spaces; SP60 models include a 1024×768 px OLED electronic viewfinder for improved readability in bright light.
• Ruggedness for field use: IP54 protection, 1 m drop resistance and up to ~8 hours operating time with two interchangeable Li‑ion batteries included.
• Integrated laser distance meter, GPS and compass for geotagging; dual-band Wi‑Fi, Bluetooth, USB‑C and mini HDMI for connectivity and IR streaming.
• Free HIKMICRO Analyzer PC software for thermal analysis and professional report generation.

Applications — Industrial sector

• LV/MV electrical panels and wiring: thermal inspection of panels, busbars, transformers and connections to detect contact resistance anomalies, phase imbalances and overheating.
• Motors, bearings and transmissions: detect abnormal temperature rise due to friction, lubrication issues or misalignment.
• Photovoltaic systems: identify defective cells, hot spots, bypass diode failures and faulty connections (ground and drone inspections).
• PCB and electronic component inspection: PCB Inspection mode and optional microscope stand for magnified thermal analysis of boards and components.
• High-temperature processes (H versions): monitoring of industrial furnaces, refractories and smelting processes up to 2,200°C (SP40H/SP60H).
• Mechanical and structural inspections: localize abnormal temperature zones on tanks, pipelines, pumps and compressors.

Applications — Building and civil engineering sector

• Energy diagnostics and thermal audits: detection of thermal bridges, heat loss and water ingress for energy performance assessments and renovations.
• Roof and flat roof inspection: identify moisture in insulation or damaged membranes for targeted repairs.
• Underfloor and hydraulic systems: verify heating/cooling uniformity and locate concealed leaks.
• Civil electrical panels: prevent fire hazards from overheating in residential distribution boards.
• On-site commissioning: document correct installation of thermal and acoustic insulation before closing works.

Included software
HIKMICRO Analyzer (PC, free) — thermal image and video analysis, archive management and professional report generation.

Downloads and documentation
Technical data sheets and product documentation are available for SP40 and SP60 models (PDF technical sheets).

Technical specifications

• IR resolution: SP40 / SP40H — 480 × 360 px; SP60 / SP60H — 640 × 480 px.
• SuperIR output: SP40 series — 960 × 720 px; SP60 series — 1,280 × 960 px.
• NETD: < 30 mK (@ 30°C, F#=1.0).
• Frame rate: 30 Hz.
• Detector pitch: 17 μm.
• Spectral range: 7.5 – 14 μm.
• Visual camera: 8 MP — 3264 × 2448 px.
• Main display: 5" LCD touchscreen 1280 × 720.
• OLED viewfinder (EVF): SP60/SP60H — 1024 × 768 px; SP40/SP40H — not present.
• Digital zoom: 1× – 12× continuous.
• Image modes: Thermal / Visual / Fusion / PIP / Blending.
• Color palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red.
• Temperature ranges: Range 1: -20°C … +150°C; Range 2: 0°C … +650°C; Range 3 (H only): 300°C … +2,200°C.
• Extended lower range (H only): from -40°C.
• Accuracy: ±2°C / ±1°C / ±1% / ±2%.
• Measurement tools: 10 spots, 1 line, 5 rectangles, 5 circles, ΔT.
• Color alarm modes: Above / Below / Interval / Insulation / Condensation.
• Focus modes: Laser Assisted AF / Continuous AF / AF / Manual / Touch AF.
• Image storage: ~130,000 images (8 MP).
• Video storage: MP4 max 420 h · Radiometric max 72 h (SP40); MP4 max 500 h · Radiometric max 38 h (SP60).
• Image format: Radiometric JPEG.
• Annotations: Voice (60 s), Text (200 chars), QR Code, Picture, Tag, Sketch.
• Connectivity: Wi‑Fi 802.11 b/g/n 2.4 + 5 GHz; Bluetooth 4.2; USB‑C; HDMI‑D (mini).
• IR streaming: via UVC and Wi‑Fi.
• GPS & compass: Yes (georeferencing for outdoor images).
• Laser distance meter: 50 m indoor / 10 m outdoor (integrated).
• SD memory: expandable up to 128 GB.
• Battery: 2 × interchangeable Li‑ion (~4 h each), 2 batteries included (total up to ~8 h).
• Protection: IP54.
• Drop test: 1 m (IEC 60068-2-31).
• Operating temperature: -20°C … +50°C.
• Weight: approx. 1,451 g (SP40) / 1,481 g (SP60).
• Dimensions: SP40 — 210.1 × 141.0 × 87.8 mm; SP60 — 204.7 × 153.6 × 87.8 mm.
• Warranty: 3 year product · 10 year detector · 2 year battery.
• Interchangeable lenses (examples): SP40 — L6 (tele, 6°×4.5°), L9 (9°×6.8°), L19 (18.7°×14° standard), L37 (37.3°×27.8° wide); SP60 — L8 (tele 8°×6°), L12 (12°×9°), L25 (24.8°×18.7° standard), L50 (50°×37.3° wide).

Accessories and standard box contents

• Available accessories: SP series lenses (L6/L9/L19/L37 for SP40 · L8/L12/L25/L50 for SP60), 0.5× wide-angle adapter, interchangeable battery HM-7250DC, dual-bay charger HM-20322ZC, optional microscope stand, desktop bracket, soft pouch HM-SP01-POUCH, hard padded case (included).
• Standard contents: thermal camera, 2 interchangeable Li‑ion batteries, dual-bay charger with international plugs, 128 GB SD card, hand strap, shoulder strap, 2-in-1 USB‑C cable, Mini HDMI–HDMI cable, lens caps, dust-free cloth, multilingual quick start guide, calibration certificate.
