Hydraulic hose 550H series
polyurethanepolyestertransfer

hydraulic hose
hydraulic hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
polyurethane, polyester
Applications
construction, transfer, conveying, agricultural
Other characteristics
flexible, abrasion-resistant, lightweight, standard, small bend radius, braided
Inner diameter

Max.: 25.4 mm
(1 in)

Min.: 6.3 mm
(0.248 in)

Outer diameter

Max.: 33.3 mm
(1.311 in)

Min.: 12.6 mm
(0.496 in)

Pressure

Max.: 224 bar
(3,248.845 psi)

Min.: 69 bar
(1,000.76 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

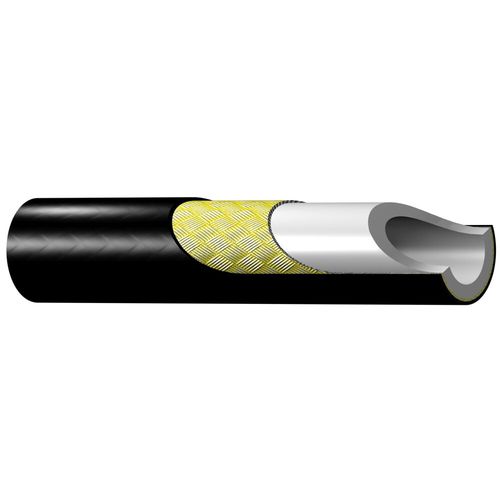

Parker 550H Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are therefore offer the developing engineer a rich choice of solutions, always assured that the long service life and easy installation are ideal for todays demanding production environments. Additionally, long available lengths reduce waste for distribution and assembly production. Applications: • Medium pressure service for general industrial and mobile hydraulic applications • Construction and agricultural machinery • Material conveying systems and lifting devices • Machine tools Technical Specifications: • Core tube: Polyester elastomer • Pressure reinforcement: One braided layer of high tensile synthetic fibre • Cover: Polyurethane, pinpricked • Colour: black • Temperature range: -40°C up to +100°C for petroleum, max. 57°C for synthetic hydraulic fluids and water-based hydraulic fluids. Notes: • Also available as twinline or multiline hose. Weight 0,05 - 0,27 lb/ft 0,08, 0,1, 0,13, 0,14, 0,21, 0,3, 0,31, 0,4 kg/m
