Water hose 2740D series
polyurethanepolyamideultra high-pressure

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
polyurethane, polyamide
Applications
ultra high-pressure, construction, cleaning, for marine applications
Norms
DIN
Other characteristics
reinforced, for concrete, spiral wire
Inner diameter

3.9 mm, 4.8 mm, 7.8 mm, 12.7 mm
(0.154 in, 0.189 in, 0.307 in, 0.5 in)

Outer diameter

12 mm, 13.2 mm, 17.2 mm, 27 mm
(0.472 in, 0.52 in, 0.677 in, 1.063 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 3,000 bar
(43,511.321 psi)

Temperature

Min.: -10 °C
(14 °F)

Max.: 70 °C
(158 °F)

Description

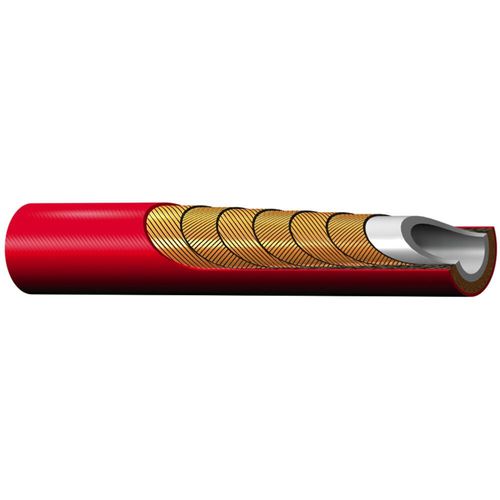

Parker Polyflex 2740D High Pressure Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • All markets requiring pressures over 700 bar for their cleaning and cutting applications Features/Benefits: • Replaces steel pipe where flexibility is important • A manufacturing procedure applying water pressure to produce complex hollow parts made from pipe-like basic materials • Compact design hereby handling and space improvements • Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control • Excellent operator safety as a result of highest quality standards which are met • Fully compatible with Polyflex Lok hereby massive time savings during assembly and improved operator safety • Design factor >2:1 Applications: • Water jet cutting with water only or with abrasive additives • Compression forming (hydroforming) • Hydrodemolition and removal of accumulated dirt and materials Technical Specifications: • Core tube: Polyoxymethylene • Pressure reinforcement: Six spiral layers of maximum tensile steel wire • Colour: DN4: yellow, DN5-8: red, DN12: black Weight 0,27 - 1,24 lb/ft 0.27 - 1.24 lb/ft 0,4, 0,47, 0,83, 1,85 kg/m Design Factor 2
