Water hose 2240D series

polyamidehigh-pressurecleaning

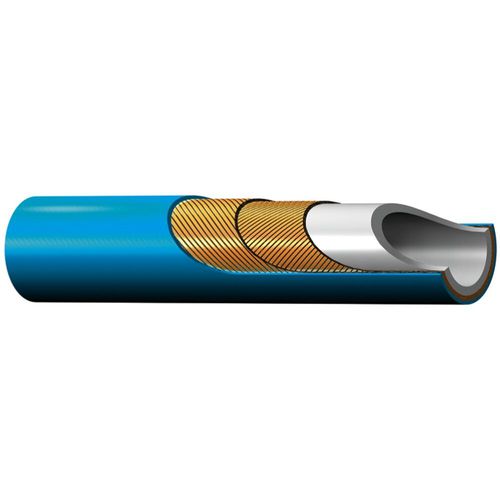

Parker Polyflex High Pressure 2240D Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Water jet cutting (hoses > 2000 bar) • All markets requiring pressures over 700 bar for their cleaning and cutting applications Features/Benefis: • Compact design hereby handling and space improvements • Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control • Excellent operator safety as a result of highest quality standards which are met • Design factor: >2:1 Applications: • Tube cleaning such as heat ex-changers in the chemical and oil refining industries • Applications as flexible lance at working pressures of over 75MPA • For working pressure up to 120 MPa (17.400 psi) Technical Specifications: • Core tube: Polyoxymethylene • Pressure reinforcement: Two spiral layers of high tensile steel wire • Standard colour: blue Weight 0,05 - 0,13 lb/ft 0,07, 0,1, 0,13, 0,2 kg/m Design Factor 2 Minimum Bend Radius 2,36 - 4,33 inch Specifications Met DIN EN 1829-2
