Water hose 2448D
polyamideultra high-pressurecleaning

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
polyamide
Applications
ultra high-pressure, cleaning, marine
Other characteristics
spiral wire
Inner diameter

4 mm (0.157 in)

Outer diameter

9.9 mm (0.39 in)

Pressure

43,640 psi

Temperature

Max.: 70 °C (158 °F)

Min.: -10 °C (14 °F)

Description

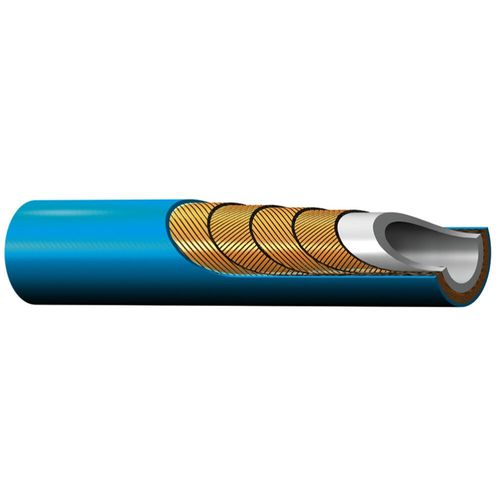

Parker Polyflex High Pressure 2448D Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Industrial • Marine • Water jet cutting (only hoses > 2000 bar) • All markets requiring pressures over 700 bar for their cleaning and cutting applications Features/Benefits: • Compact design hereby handling and space improvements • Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control • Excellent operator safety as a result of highest quality standards which are met • Design factor >2:1 Applications: • Tube cleaning • Marine cleaning • For working pressure up to 325 MPa (47.120 psi) Technical Specifications: • Core tube: Polyoxymethylene • Pressure reinforcement: Four spiral layers of maximum tensile steel wire • Cover: Polyamide • Standard colour: blue • Temperature range: -10°C up to +70°C Nominal Hose Inside Diameter 4 Hose I.D. (size) -25 Hose Inside Diameter 4 mm 5/32 inch Hose Outside Diameter 9.9 mm Maximum Operating Pressure 43640 psi Minimum Burst Pressure 602 MPa 87280 psi Minimum Bend Radius 100 mm Weight (per unit of measure) 0.21 kg/m
