Water hose 2640D
hydraulichigh-pressurecleaning

water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water, hydraulic
Applications
high-pressure, cleaning, construction, marine, for petrochemical applications
Other characteristics
for concrete, spiral wire
Inner diameter

Max.: 7.9 mm (0.311 in)

Min.: 4 mm (0.157 in)

Outer diameter

12 mm, 13 mm, 14.6 mm, 16.9 mm (0.472 in)

Pressure

2,100 bar, 2,800 bar (30,457.925 psi)

Temperature

Max.: 70 °C (158 °F)

Min.: -10 °C (14 °F)

Description

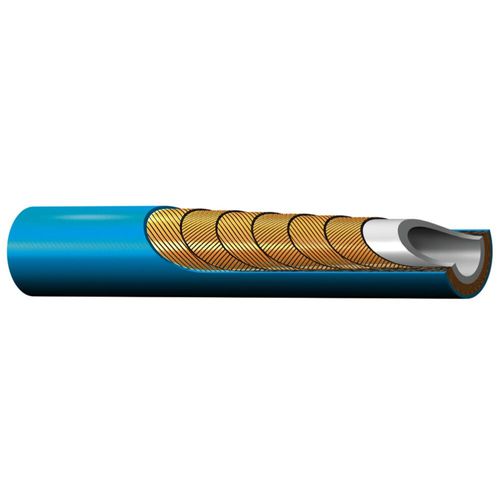

Parker Polyflex High Pressure 2640D Hoses are developed for High and Ultra High Pressure applications. The excellent handling increases operator efficiency and long service life reduces costly down times. Superior safety standards are applied for the benefit of the operator. Markets: • Industrial cleaning • Marine cleaning • Oil & Gas • Water jetting Features/Benefits: • Compact design hereby handling and space improvements • Compliant with DIN EN 1829-2 thus legal backup and approved safety hazard control • Excellent operator safety as a result of highest quality standards which are met • Design factor: 2.5:1 Applications: • Industrial cleaning • mainly used for hydrodemolition and removal of dirt • for use with petroleum and synthetic hydraulic fluids • especially suitable for hydraulic pre-tensioning equipment, test rigs, as well as in offshore oil applications • For working pressure up to 280 MPa (40.600 psi) Technical Specifications: • Core tube: Polyoxymethylene • Pressure reinforcement: Six spiral layers of maximum tensile steel wire • Cover: Polyamide • Standard colour: blue • Temperature range: -10°C up to +70°C Weight 0,19 - 0,46 lb/ft 0,29, 0,41, 0,64, 0,68 kg/m Nominal Hose Inside Diameter 4, 5, 6, 8 mm Design Factor 2 Maximum Operating Temperature +158 °F +70 °C Minimum Operating Temperature -10 °C 14 °F Hose Outside Diameter 0,47 - 0,67 inch 12, 13, 14,6, 16,9 mm Maximum Operating Pressure 2800 - 2100 bar 280, 250, 210 MPa 40600, 36250, 30450 psi
