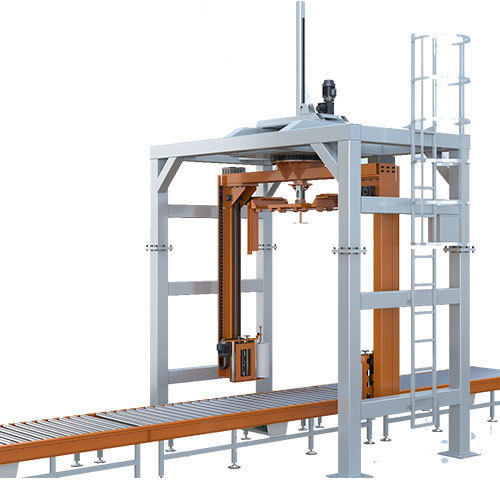

Rotary arm stretch wrapper LR1800FZ
automaticwith mechanic brakingfor the food and beverage industry

Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry
Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry
Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry - image - 2
Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry - image - 3
Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry - image - 4
Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry - image - 5
Rotary arm stretch wrapper - LR1800FZ - Shandong Dyehome Intelligent Equipment Co.,Ltd - automatic / with mechanic braking / for the food and beverage industry - image - 6
Add to favorites
Compare this product
Go to the Shandong Dyehome Intelligent Equipment Co.,Ltd website for more information

Characteristics

Type
rotary arm
Operating mode
automatic
Braking type
with mechanic braking
Product applications
for the food and beverage industry, pallet, for packaging, for cardboard boxes, for industrial applications, for heavy loads, for chemical products, for building materials, for packaging, for cartons, for production lines, for stretch film, for paper, packaging machine
Other characteristics
with touchscreen, stretch film, with conveyor, vertical, high-speed, with top sheet applicator, with top cover sheet dispenser, double-head, for the food and beverage industry, with corner board applicator, with motorized roller conveyor, for the chemical industry, for the furniture industry, with free roller conveyor, five-sided, with strapping function
Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 65 rpm
(408 rad.min-1)

Voltage

220 V, 380 V

Description

Product overview
  • Fully automatic double head rotary arm stretch wrapper for high-throughput pallet packaging
  • Model: LR1800FZ with pre-stretch carriage (two reels)
  • Optional pneumatic or mechanical top presser to stabilize tall or unstable loads
  • PLC touchscreen controls, automatic film cut & clamp, hydraulic lifter and roping device options
  • Minimal operator intervention; adjustable wrapping parameters for speed and load integrity
Installation, safety and options
  • Typical utilities: three-phase 380 V power supply and compressed air 0.6–0.8 MPa
  • Recommended for palletized goods in industrial packaging lines requiring high throughput
  • Available options: pneumatic or mechanical top presser, hydraulic lifter, roping device, custom conveyor integration
  • Safety: integrate flashing lights and safety netting; ensure perimeter guarding during operation
  • Maintenance: access panels for quick service, pre-stretch carriage with replaceable rollers
  • Operator: machine designed for minimal input—program wrapping cycles via PLC touchscreen
