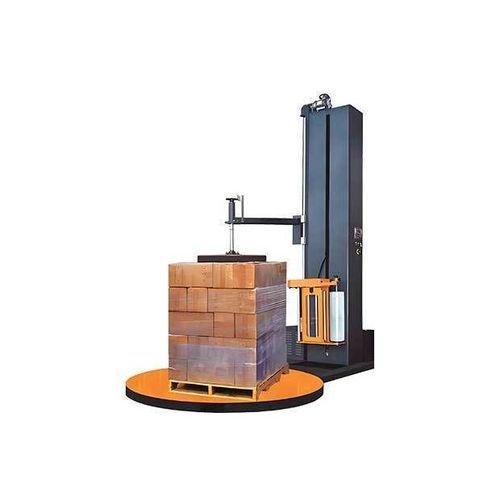

Turntable stretch wrapper TP1650F-DCSautomaticfor the food and beverage industryfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- automatic
- Product applications
- for the food and beverage industry, pallet, for industrial applications, for packaging, for industrial applications, food, film, for electrical appliances, for cardboard boxes, for windows and doors, for logistics, packaging machine, for chemical products, door, for glass, window, for electrical components, for packaging, for finished goods, for the food industry, semi-automatic, turntable, for production lines, for ceramic products
- Other characteristics
- stretch film, vertical, with top sheet applicator, for the food and beverage industry, for the chemical industry, with touchscreen, with strapping function, five-sided
- Table diameter
1,650 mm
(64.96 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 12 rpm
(75 rad.min-1)- Power
1.55 kW
(2.11 hp)
Description
Overview
Top-press wrapping machine designed for light, unstable or hard-to-stack loads. An electric or pneumatic top plate applies controlled pressure to secure the load during the wrapping cycle. The pressurizing system prevents scattering and displacement during film winding. Top plate stroke range: 500–2000 mm. Standard electrical components are from well-known brands. Available in automatic and pneumatic top-press configurations, with optional automatic film cutting at cycle end to improve throughput.
Characteristics / Technical specifications
Top-press wrapping machine designed for light, unstable or hard-to-stack loads. An electric or pneumatic top plate applies controlled pressure to secure the load during the wrapping cycle. The pressurizing system prevents scattering and displacement during film winding. Top plate stroke range: 500–2000 mm. Standard electrical components are from well-known brands. Available in automatic and pneumatic top-press configurations, with optional automatic film cutting at cycle end to improve throughput.
Characteristics / Technical specifications
- Turntable Size: 1650 mm
- Turntable Speed: 0–12 RPM (adjustable)
- Machine Weight: 550 kg
- Maximum wrapping speed: 20–40 loads/hour
- Standard Pre-stretch: 250–300%
- Maximum pallet size: 1.1 x 1.2 m (customizable)
- Standard Film Width: 500 mm
- Max Load Weight: 2000 kg
- Pressure: 0.4–0.6 MPa
- Power Supply: 110/220/380 V, 50 Hz
- Top plate control: Included
- Power: 1.55 kW
