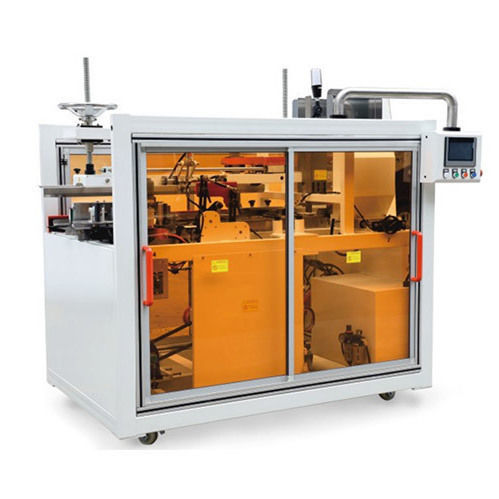

Automatic case erector

adhesive tapeprecise foldinghigh-speed

Product Overview
High-speed case erector designed for inline integration or standalone operation. Enables automatic case forming with high throughput—up to 25 cases/min depending on carton size. Suitable for continuous production environments requiring fast, reliable case erection.

Key Features

• CAM-type forming mechanism for consistent carton shaping
• Precisely engineered taper structure ensures accurate folding
• Continuous empty-carton replenishment during operation
• Standard configuration compatible with posts 6–12#
• Forming speed varies with carton dimensions
• Integrated tape and carton material shortage alarm

Additional Details
Standard restoration screen height: 1050 mm. Designed to handle multiple identical cartons simultaneously. Can be integrated into an existing production line or used as a single standalone machine.

Specifications

• Carton opening speed: 15–25 ctns/min
• Air consumption: 400 NL/min
• Carton size range: L130–260 × W80–150 × H90–180 mm (130 ≤ W/2 + H ≤ 255, L + W ≤ 410)
• Operating pressure: 6 kg/cm²
• Power supply: 380 V, 50 Hz, 3 ph
• Machine dimensions: L1980 × W1250 × H1700 mm
• Power: 1.5 kW
• Machine weight: 800 kg
• Adhesive tape width: W48 mm
