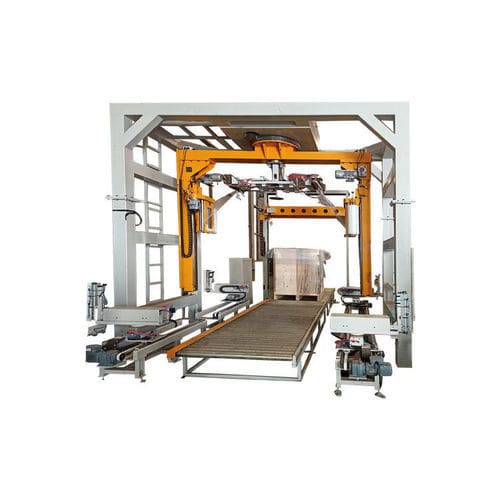

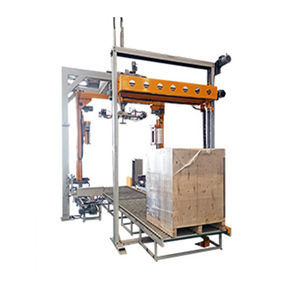

Double-arm rotary stretch wrapper

automaticfor bulky productsdouble-roll

Product overview
The arm-type high-speed stretch wrapping machine is equipped with two independent film carriages for faster cycle times and improved film application. An optional angle bead device provides top pressing and enhanced film control for fragile or irregular loads. Designed for palletised goods with large volume and weight requirements, the machine integrates easily into high-throughput production lines.

Key features

• Suitable for large-volume and heavy goods (up to 2000 kg).
• Double-head rocker increases cantilever compared with single-arm wrapping, significantly improving throughput.
• For identical wrapping patterns, cycle time is reduced by nearly half, making it ideal for demanding assembly-line operations.

Technical specifications

• Speed: 0-60 RPM (adjustable)
• Maximum wrapping throughput: 30–60 loads/hour
• Maximum pallet size: 1.1 × 1.2 m
• Maximum wrapping height: 2000 mm
• Maximum load weight: 2000 KG
• Power supply: 380 V 50 Hz
• Motor power: 7.5 KW
• Machine dimensions: L4300 × W2320 × H3530 mm
• Machine weight: 2500 Kg
• Standard pre-stretch: 250–300%
• Standard film width: 500 mm
• Air consumption: 1000 ml/min
• Air pressure: 0.4–0.6 MPa
