PLC-controlled packing machine

filmfor foodfor the food industry

Product overview

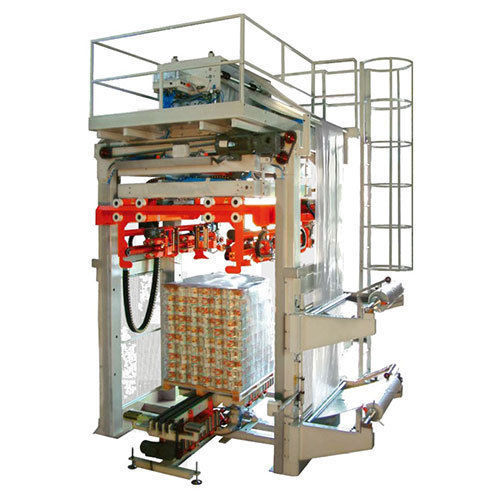

Cold stretch packing machine is designed for palletised goods conveyed on back-channel conveyors or handling lines. Compared with traditional stretch-wrapping and heat-shrink systems, it requires a smaller footprint and reduces film and energy consumption. The process produces a smooth, visually uniform wrap and is suitable for heat-sensitive products such as certain chemical raw materials. The system also helps protect loads from dust and moisture and can contribute to lower overall packaging costs.
Technical specifications

• Characteristics (customizable)
• Air source pressure: 6 bar
• Reel film diameter: 1000 mm
• Reel film width: 1000 mm
• Film thickness: 80–150 µm
• Max load weight: 1500 / 2000 kg (configurable)
• Maximum packable weight: 2000 kg
• Maximum product height: 1800 mm
• Packing speed: 60–120 P/H
• Air consumption: 260 L/min
• Power supply: 380 V / 3P / 5L ±10% / 50 or 60 Hz
• Installed power: 21 kW

Options & customization

• Adjustable film thickness and reel width
• Integration with conveyor and PLC controls
• Customisable load capacity and handling fixtures
• Service and spare parts packages available
