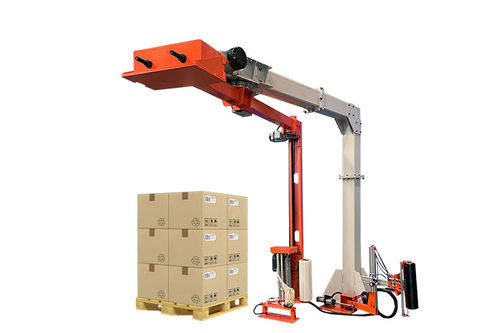

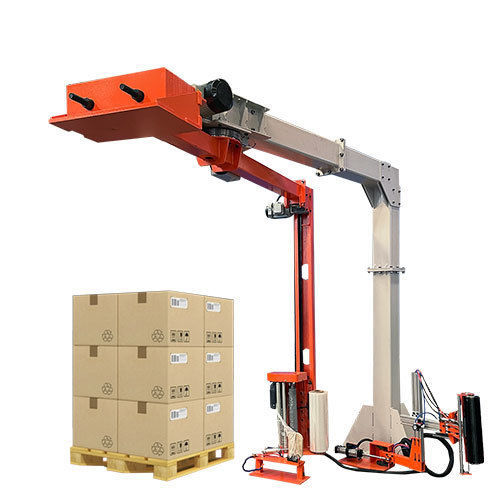

Rotary arm stretch wrapper R1800FZ

automaticwith mechanic brakingstretch film

Overview
The tripod-mounted Single Rotary Arm Pallet Wrapper R1800FZ wraps palletized loads using stretch film. By using the film’s elasticity and self-adhesive properties, the machine secures load and pallet into an integrated unit to prevent shifting or collapse during storage and transport, while protecting against dust, moisture and external damage.

Key features

• Tripod-mounted rotary arm structure with a compact footprint
• No practical maximum pallet weight limitation (suitable for heavy loads)
• Intuitive touchscreen control with PLC-based intelligent interface
• Real-time adjustment of wrapping parameters: carriage speed, film tension and arm speed
• Soft-start and soft-stop for smooth operation
• Automatic return-to-home positioning after each cycle
• Pre-stretch film frame and automatic clamping & cutting options

Benefits and applications
Increases packaging efficiency and reduces manual handling. Enables automatic load detection and programmable wrapping patterns to match product stability requirements. Commonly used in food & beverage, chemicals, paper and packaging, building materials and logistics operations.

Technical specifications

• Equipment name: Rotary Arm Wrapping Machine
• Model: R1800FZ
• Wrapping dimensions: 800–1200 mm × 800–1200 mm
• Wrapping height: 700–2000 mm
• Efficiency: 20–50 pallets/hour
• Control system: PLC control with touchscreen
• Power supply: 380 V (three-phase, five-wire), 50 Hz
• Arm speed: 0–13 rpm (variable frequency control)
• Minimum load weight: 100 kg
• Arm system: Auto-reset arm with sensitive emergency brake
• Lifting column: Chain structure with variable speed
• Film frame system: Pre-stretch frame
• Auto film cut: Automatic clamping & cutting
• Air pressure: 0.6–0.8 MPa
• Air supply (as listed): 1.85 kW
• Safety features: Flashing warning lights, safety nets
• Customizable options: Machine color, automatic film clamping/cutting, machine height, packaging size
