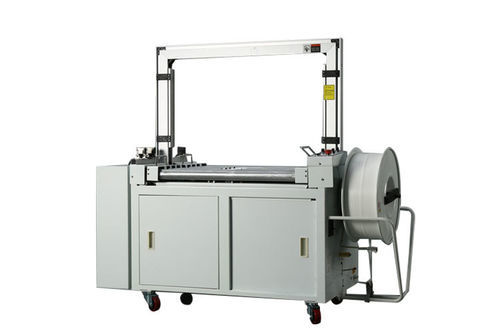

Fully-automatic strapping machine DH-101A

tape380V three-phasefor logistics

Overview
This fully automatic strapping machine is designed for continuous use on a workbench equipped with a dynamic roller. It is intended for integration into binding or production lines to handle articles of varying sizes and irregular shapes and can operate unmanned when connected to a power transfer/production line.

Key features

• Automatic single- and multiple-strip parallel strapping (1 to 4 strips selectable via photoelectric control)
• Dynamic roller workbench for smooth in-line handling of irregular items
• Drive unit with dust cover and low-noise special design
• Automatic power-off function for energy saving
• Hot melt bottom bonding method
• Tying speed: <2.5 second per channel; tightening force adjustable 0–60 KG

Technical specifications

• Model: DH-101A
• Overall size (L×W×H): 1400 mm × 628 mm × 1418 mm
• Minimum package size: 80 mm (W) × 60 mm (H)
• Standard frame size: 800 mm (W) × 600 mm (H)
• Tape width specification: 9–15 (+1) mm
• Tape roll: width 160–180 mm; inner diameter 200–210 mm; outer diameter 400–500 mm
• Material thickness handled: 0.55–1.0 (+0.1) mm
• Working table height: 750 mm (customizable)
• Weight capacity: 80 KG
• Tying speed: <2.5 second per channel
• Bonding method: Hot melt, bottom bonding
• Tightening force: 0–60 KG (adjustable)
• Power supply: 380 V, 50/60 Hz, 1.0 kW

Applications

• In-line strapping on assembly or packaging lines for parts with varying sizes
• Binding irregularly shaped or grouped items prior to shipment
• Automated production environments requiring unmanned operation

Options & customization

• Table height and frame dimensions customizable to customer requirements
• Selectable number of parallel strips (1–4) via photoelectric control
• Adaptable tape sizes and roll dimensions within specified ranges
• Integration with conveyors and power transfer lines for full automation
