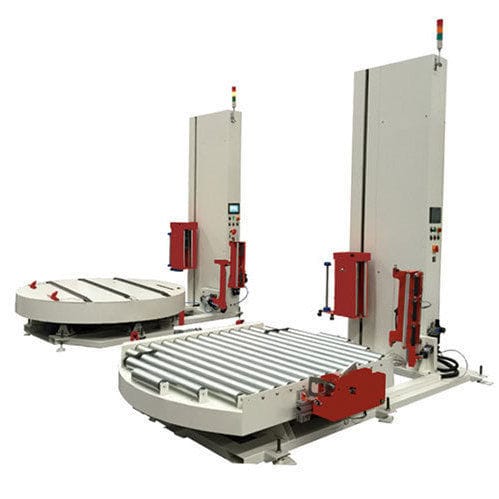

Turntable stretch wrapper TP2000FZfully-automaticwith mechanic brakingfor the food and beverage industry
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- fully-automatic
- Braking type
- with mechanic braking
- Product applications
- pallet, for industrial applications, for the food and beverage industry, for packaging, for cardboard boxes, for chemical products, for building materials, for food packaging, for medical packaging, packaging machine, for glass
- Other characteristics
- stretch film, with conveyor, with top sheet applicator, with top cover sheet dispenser, for the food and beverage industry, with strapping function, with corner board applicator, with rollers, five-sided
- Maximum pallet weight
2,000 kg
(4,409.25 lb)- Table diameter
2,000 mm
(78.74 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 15 rpm
(94 rad.min-1)
Description
Overview
The online slewing-wheel pallet wrapping machine combines a tug and slewing support to increase load capacity and extend service life. Available with roller or chain conveyor systems, this conveyorized pallet wrapper is designed for high-volume automated packaging lines and can operate at adjustable speeds for 10–35 loads/hour. Optional modules include film cutting, top press, top-sheet dispenser, strapping and a brush/rubber film brushing mechanism for improved film winding. The machine can be integrated with factory production control systems.
Features
The online slewing-wheel pallet wrapping machine combines a tug and slewing support to increase load capacity and extend service life. Available with roller or chain conveyor systems, this conveyorized pallet wrapper is designed for high-volume automated packaging lines and can operate at adjustable speeds for 10–35 loads/hour. Optional modules include film cutting, top press, top-sheet dispenser, strapping and a brush/rubber film brushing mechanism for improved film winding. The machine can be integrated with factory production control systems.
Features
- Compatible with roller or chain conveyors to meet varied transport layouts
- Designed for high-throughput automated wrapping processes
- Centering and precise pallet positioning for uniform wraps
- Customizable control system and optional automation modules
- Optional top press, top-sheet dispenser, cutting and strapping units
- Brush/rubber film brushing mechanism available for optimal film application
- Standard pre-stretch and film-width options to suit film types
