Fully-automatic strapping machine

for cartonsfor industrial applicationsfor corrugated cartons

Product overview

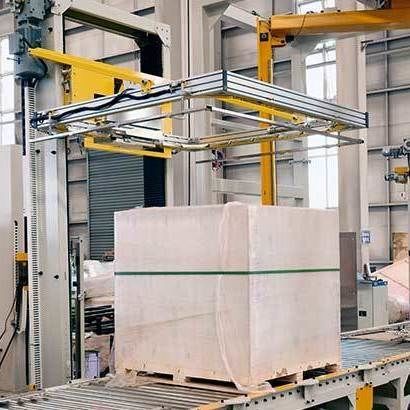

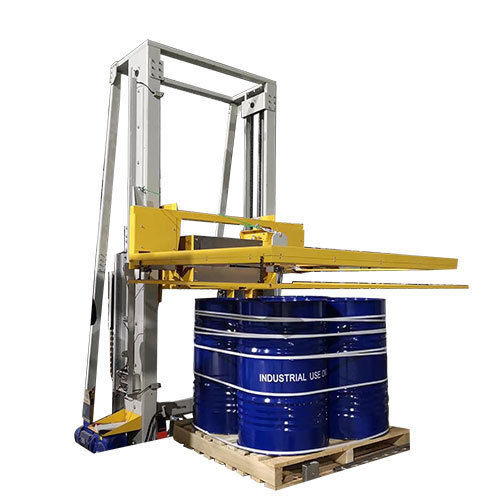

Fully automatic horizontal strapping machine designed to apply horizontal straps to products placed on pallets, securing loads for transport and storage while maintaining a neat bundled appearance. Standard movement stroke is 500 mm with a width difference allowance of 500 mm. The machine can be expanded with an automatic vertical fastening unit and a horizontal strapping unit with pressure device. An optional cardboard corner protector applicator can be fitted for additional edge protection.

Application
Suitable for palletized goods with regular dimensions in length and width. Minimum strap height from floor is 600 mm. Configurable to accommodate different packaging processes by adding vertical fastening or a pressure device where required.

Technical specifications

• Overall equipment size (standard): 3680 × 1600 × 3530 mm
• Packing speed: 15 S/A
• Power supply: 3/N PE AC 380 V
• Standard cargo size (L×W×H): 1200 × 1200 × 1500 mm
• Equipment power: 2.2 kW
• Positioning setting: Touch-screen numerical control (teach)
• Control voltage: 24 V DC
• Paper core specification: 406 mm
• Binding strength: 200–2500 N
• Standard stroke (movement): 500 mm
• Width difference allowance: 500 mm
• Optional: cardboard corner protector applicator
• Expandable with automatic vertical fastening unit and horizontal strapping unit with pressure device
