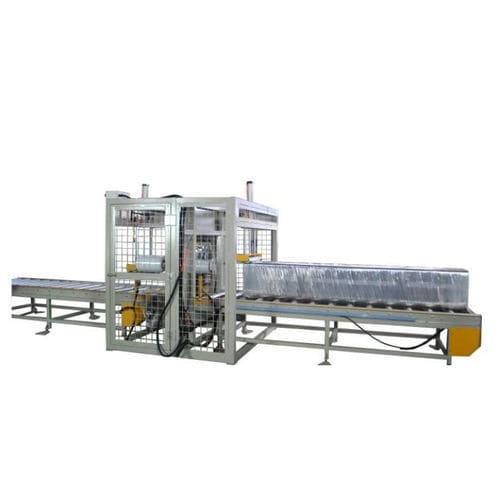

Horizontal stretch wrapper QS800automaticfor cylindrical productsfor flat products
Add to favorites
Compare this product
Characteristics
- Type
- horizontal
- Operating mode
- automatic
- Product applications
- for packaging, for industrial applications, for windows and doors, for building materials, for flat products, for packaging, for production lines, for cylindrical products, for long products, for pipes, for PVC pipes, for wood
- Other characteristics
- stretch film, with conveyor, horizontal, with touchscreen, with rollers
- Maximum pallet weight
Max.: 1,000 kg
(2,204.62 lb)Min.: 0 kg
(0 lb)- Rotational speed
Max.: 120 rpm
(754 rad.min-1)Min.: 50 rpm
(314 rad.min-1)- Voltage
380 V
- Power
2.3 kW
(3.13 hp)
Description
Product description

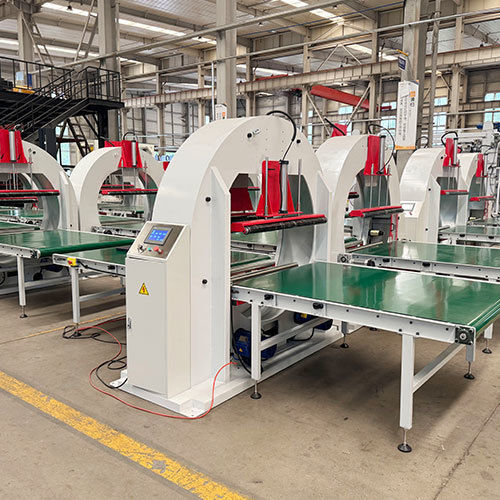

The Horizontal Orbital Stretch Wrapping Machine is specially designed for wrapping long products such as aluminum profiles, steel pipes, plastic profiles, wooden boards, flooring, and other elongated materials. It provides secure and efficient packaging while reducing labor costs and improving packaging consistency.
Key Features
Suitable for products up to 6000 mm in length (longer lengths available upon request).
Automatic film clamping and cutting system for continuous operation.
Adjustable wrapping overlap (10-90%) to optimize film consumption.
Variable ring rotation speed and conveyor speed controlled by frequency inverters.
Compatible with PE stretch film (250 mm width).
Easy HMI operation with PLC control for stable and reliable performance.
Can be integrated with upstream and downstream conveyor systems for automated packaging lines.
Characteristics
Aluminum ring diameter: Ф800mm
Max product diagonal: ≤ 400 mm
Conveyor load capacity: 100 / 500 / 1000 / 2000 kg
Power supply: 380V 3phase 50Hz
Conveyor type: Roller conveyor / Belt conveyor / Chain conveyor
Rotational speed: 50–120 r/min
The Horizontal Orbital Stretch Wrapping Machine is specially designed for wrapping long products such as aluminum profiles, steel pipes, plastic profiles, wooden boards, flooring, and other elongated materials. It provides secure and efficient packaging while reducing labor costs and improving packaging consistency.
Key Features
Suitable for products up to 6000 mm in length (longer lengths available upon request).
Automatic film clamping and cutting system for continuous operation.
Adjustable wrapping overlap (10-90%) to optimize film consumption.
Variable ring rotation speed and conveyor speed controlled by frequency inverters.
Compatible with PE stretch film (250 mm width).
Easy HMI operation with PLC control for stable and reliable performance.
Can be integrated with upstream and downstream conveyor systems for automated packaging lines.
Characteristics
Aluminum ring diameter: Ф800mm
Max product diagonal: ≤ 400 mm
Conveyor load capacity: 100 / 500 / 1000 / 2000 kg
Power supply: 380V 3phase 50Hz
Conveyor type: Roller conveyor / Belt conveyor / Chain conveyor
Rotational speed: 50–120 r/min
