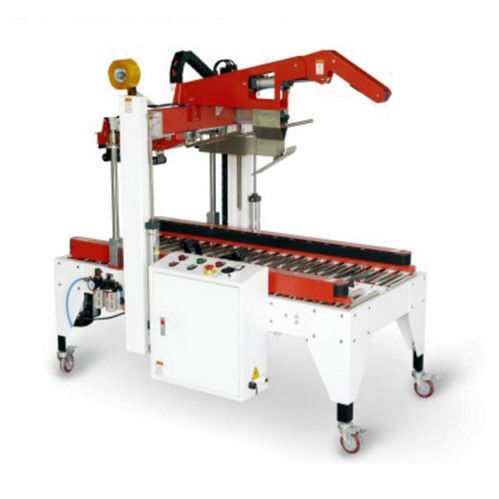

Adhesive tape carton sealer

automatic

Overview
Automatic top-flap carton sealer designed for handling cartons of various sizes simultaneously. The machine provides automatic width and height adjustment when carton specifications change, uses dual-side belt transmission and can reach an estimated throughput of up to 900 cases/hour. It can be integrated inline with a conveyor or used as a standalone unit. Standard conveying height is 600 mm; customization available.

Main features

• Automatic folding of top flap and tape sealing in a single pass.
• Automatic width and height adjustment for different carton specifications.
• Dual-side belt drive for precise, smooth and durable transmission.
• Applicable inline with conveyor lines or as an independent machine.

Table details / additional product notes
Suitable for a range of carton dimensions without manual reconfiguration. Automatic cover folding and sealing complete the operation in one cycle. Standard conveying height is 600 mm; other heights available on request. Transmission is belt-driven on both sides for stable motion and extended service life.

Specifications

• Transport speed: 20 m/min
• Air supply pressure: 6 kg/cm²
• Maximum carton size: L600 × W500 × H500 mm
• Minimum carton size: L280 × W200 × H150 mm
• Adhesive tape width: 48 mm / 60 mm / 75 mm
• Air consumption: 100 Nl/min
• Power supply: 380 V, 50 Hz
• Machine dimensions: L1700 × W920 × H1450 mm
• Power: 0.4 kW
• Machine weight: 280 kg
• Standard conveying height: 600 mm (customizable)
• Estimated throughput: up to 900 cases/hour
• Transmission: dual-side belt drive
• Operation modes: inline with conveyor or standalone
