Materials analysis software TRAPEZIUM LITE X

Overview
TRAPEZIUM LITE X is a compact material testing software developed for Autograph series testing machines. It provides core functions to streamline test execution and method management, focusing on a simplified user interface and repeatable workflows.

Features

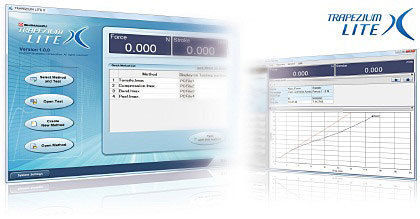

• Simple screen layout: Limited buttons and a clear interface enable fast operator orientation and one-touch test method selection.
• Supports industry standards: Test method file recording allows standardized, repeatable tests and quick setup for common procedures.
• Quick method list: Predefined method lists let operators start routine tests without using a mouse or keyboard.

Downloads (available documents - no links shown)
Available brochure and manuals: Brochure: Shimadzu Analytical and Measuring Instruments [PDF / 11.13MB].

Applications (table)
Tensile Test of Carbon Fiber [PDF / 547.18KB] | 2019-09-04

Manuals (table)
Data Processing Reference Manual [PDF / 2.02MB] | 2020-10-14
User's Guide - TRAPEZIUM LITE X [PDF / 7.3MB] | (date not shown)
Software Reference Manual - TRAPEZIUM LITE X [PDF / 8.21MB] | (date not shown)

Technical specifications

• Product category: Material Testing Software
• Designed for: Autograph series testing machines
• Primary functions: Test method recording, quick method list, one-touch method selection
• User interface: Simple screen layout with few buttons; basic operation possible without mouse or keyboard
• Standards: Supports industry-standard test methods via recorded method files
• Documentation: Brochure, User's Guide and Software Reference Manual available
