Video extensometer TRViewX

transverseaxialtensile

Overview

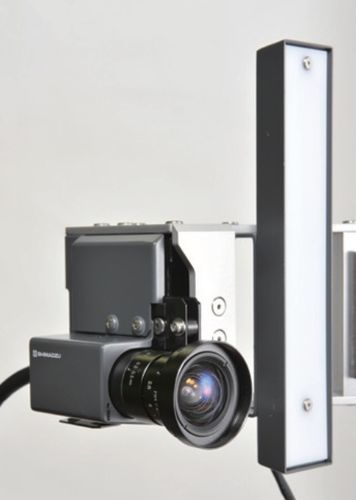

TRViewX is an advanced non-contact digital video extensometer that delivers high-accuracy elongation measurements and can measure width changes. It is designed for a wide range of materials testing, especially films, foils and other thin or narrow specimens, and can operate inside thermostatic chambers for atmosphere-controlled tests without contacting the specimen. TRViewX provides elongation accuracy in accordance with ISO 9513 Class 0.5 and JIS B 7741 Class 0.5, and width measurement accuracy in accordance with ISO 9513 Class 1 and JIS B 7741 Class 1. It is compliant with plastic tensile testing standards ISO 527, JIS K7161 and ASTM D638 and supports 75 mm gauge length (type A1) specimens.

Features

• High-accuracy elongation measurements (ISO 9513 Class 0.5 / JIS B 7741 Class 0.5)
• Width measurement capability (ISO 9513 Class 1 / JIS B 7741 Class 1)
• Non-contact optical/video measurement suitable for films, foils and narrow specimens
• Single- and dual-camera model options
• High-intensity LED lighting

Software Integration
Full integration with Trapezium X testing software for synchronized data acquisition, image capture and inclusion of images in reports.

Applications (selected documents listed)
Documents | Creation Date
Value Determination with Video Type Non-Contact Extensometer (ISO 10113:2020) | 2024-03-06
MMB Test of CFRP in Conformance with ASTM D6671 - Material Testing System | 2017-10-04
Shear Test of Composite Material (V-Notched Rail Shear) - Material Testing System | 2017-06-27

Videos (examples)

• TRViewX Non-Contact Digital Video Extensometer - Example of Plastic Measurements
• TRViewX Non-Contact Digital Video Extensometer - Example of Open Hole CFRP Plate Measurements

Technical specifications

• Measurement principle: non-contact digital video extensometer
• Elongation accuracy: ISO 9513 Class 0.5 / JIS B 7741 Class 0.5
• Width measurement accuracy: ISO 9513 Class 1 / JIS B 7741 Class 1
• Applicable standards: ISO 527, JIS K7161, ASTM D638 (supports type A1, 75 mm gauge length)
• Suitable specimen types: films, foils, thin or narrow materials, specimens for atmosphere-controlled testing
• Model options: single-camera and dual-camera configurations
• Lighting: high-intensity LED illumination
• Software: integration with Trapezium X testing software for image capture and reporting
