Materials analysis software TRAPEZIUMX-V

Overview

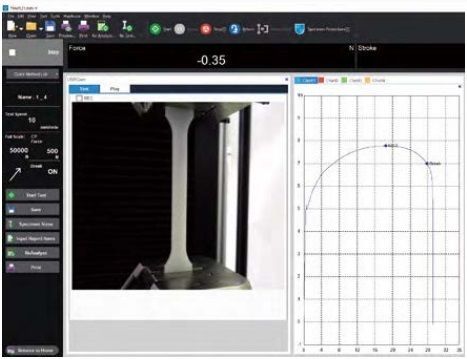

TRAPEZIUMX-V for Windows 10 provides an intuitive environment for configuring and executing material tests. Key functions include data search, a visual parameter wizard, and a quick condition list accessible from the start-up screen. Users can create test conditions ranging from simple control sequences to complex patterned controls.

Product summary
Operation software designed to simplify use of the AGX-V2 testing system while offering advanced functionality. The flexible user interface adapts to diverse testing scenarios and user levels, enabling both routine and specialized test procedures.

Features

• Choose from five software programs: Single, Cycle, Control, Texture, Spring
• Visual Wizard: set test parameters while viewing the overall sequence; illustrative windows guide configuration of test control, sample, and data processing
• Condition management: quick condition list selectable from the start-up screen and integrated data search
• Reporting: Report Designer with flexible layout; export reports to PDF, Microsoft Word, Excel, and HTML

Applications — Documents
Documents
Tensile Test according ISO 6892-1 using the long-range extensometer MFX 500-B
Creation Date: 2024-09-09
Manuals
TRAPEZIUMX-V Hardware Settings Guide [PDF / 2.62MB] — Creation Date: 2025-03-31
TRAPEZIUMX-V Data Processing Reference Manual [PDF / 7.98MB] — Creation Date: 2025-03-31
TRAPEZIUMX-V Software Reference Manual [PDF / 10.6MB] — Creation Date: 2025-03-31

Technical specifications

• Type: Operation software for material testing
• Operating system: Windows 10
• Designed compatibility: AGX-V2
• Available software programs: Single, Cycle, Control, Texture, Spring
• Parameter setup: Visual test parameter wizard with overall-sequence view and illustrative configuration windows
• Condition management: Quick condition list on start-up screen; data search function
• Reporting: Report Designer; export to PDF, Microsoft Word, Excel, HTML
• User interface: Flexible UI suitable for a variety of testing situations
