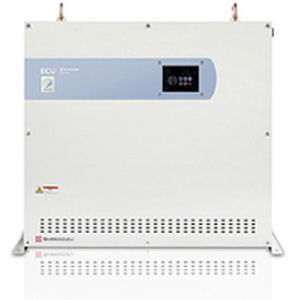

Smart energy saving system ECU1

Overview
The ECU1/ECU2 Series is an energy-conservation unit for Servopulser hydraulic power supply units used in fatigue and endurance testing. It reduces electrical consumption and contributes to lower CO2 emissions and operating costs by adapting power delivery to test conditions.

Product description
Conventional hydraulic power supply units for fatigue and endurance tests run continuously at full power to meet maximum force and speed requirements, which can lead to excessive energy consumption depending on test conditions. The ECU Series enables multi-stage adjustment of motor rotational speed and hydraulic supply pressure to match actual test demand, achieving energy savings of up to approximately 50% in many cases. The ECU is intended for use with the Servo Controller 4830 (supplied separately). Appearance and specifications are subject to change without notice.

Features

• Energy savings up to approximately 50% depending on test conditions and circumstances.
• Motor rotational speed and hydraulic supply pressure can be set in multiple stages to reduce energy use compared with conventional continuously full-power systems.
• Reduces power drawn from the hydraulic power supply unit according to test demand to lower running costs.
• Ecology Simulation tool to estimate reductions in power consumption, operating costs and CO2 emissions when using the ECU Series versus a conventional Servopulser hydraulic power supply unit.
• Designed for use with Shimadzu Servopulser hydraulic power supply units and compatible with the Servo Controller 4830 (supplied separately).

Technical specifications

• Product family: ECU1/ECU2 Series.
• Function: Energy-conservation unit for Servopulser hydraulic power supply units used in fatigue and endurance testing.
• Expected energy reduction: up to about 50% (dependent on test conditions and circumstances).
• Adjustable parameters: motor rotational speed and hydraulic supply pressure adjustable in multiple stages.
• Intended combination: used in combination with the Servo Controller 4830 (not included).
• Primary benefits: reduced CO2 emissions and lower running costs through optimized power usage.
• Note: Appearance and specifications are subject to change without notice.
