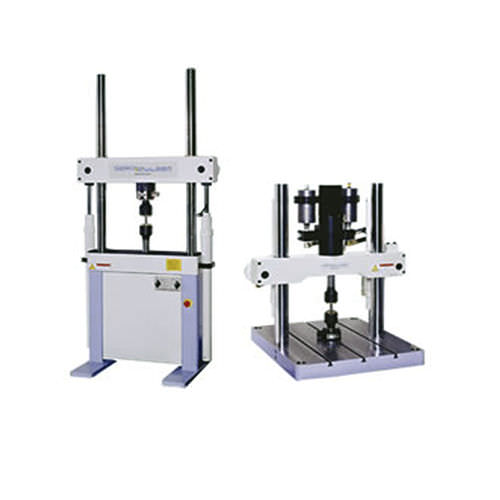

Static load testing machine EHF-E

fatiguecompressionendurance

Overview
Electrohydraulic Servopulser fatigue and endurance testing machine for static, dynamic and long-term fatigue tests of materials and small components. The EHF-E Series supports actuator dynamic capacities of 50 kN, 100 kN and 200 kN and is designed for repeatable control across a wide test range.

Key features

• Actuator dynamic capacity options: 50 kN / 100 kN / 200 kN
• High structural rigidity and a large test space suitable for fixtures and small parts
• Dual-stage crosshead drive mechanism for extended stroke and fine control
• Suitable for static, dynamic and endurance/fatigue testing protocols

Applications

• Evaluation of electric vehicle (EV) motor shafts produced by radial forging
• Fatigue testing of artificial joint materials and biomedical components
• Compression fatigue tests of gaskets and sealing elements
• Dynamic testing of small forged and machined parts

Downloads

• Dynamic and Fatigue Testing Systems (PDF / 68.74MB)

Technical specifications

• Series name: EHF-E Series
• System type: Electrohydraulic servo (Servopulser) fatigue testing machine
• Application range: static tests to fatigue and endurance testing
• Dynamic actuator capacity options: 50 kN, 100 kN, 200 kN
• Design features: high rigidity, large testing space
• Drive mechanism: dual-stage crosshead drive
• Product family: Servopulser Servo Dynamic Systems
