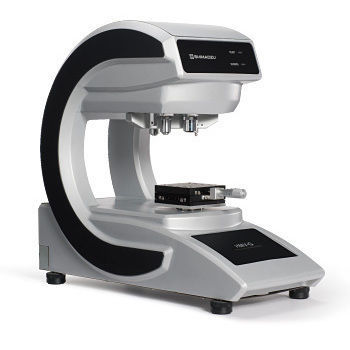

Vickers hardness tester HMV-G

micro Vickersbenchtopfor automobiles

Overview
The HMV-G Series micro Vickers hardness testers provide standardized Vickers hardness measurement for laboratory and production quality control. The lineup includes G31 models with a built-in CCD camera for automatic length measurement, G21 models, fully automated FA variants with electrically driven revolver and XYZ stages, and manual units with optical heads. Optional color-camera models and electric micrometer-equipped XY stages are available.

Features

• Automatic length measurement (G31 series): integrated CCD camera and software implement standardized automatic reading of Vickers indentations.
• Operator-focused software (G31 series): intuitive main operation sequence designed for repeatable workflows across operators.
• Automated operation (FA/XY series): electrically driven revolver and XYZ stages enable unattended series testing; electric micrometer on XY stage allows precise automatic positioning and full-sample/edge recognition (G31-FA).

Downloads / Documents (titles)

• Shimadzu Analytical and Measuring Instruments (brochure)
• HMV-G Series - Micro Vickers Hardness Tester (brochure)
• Application notes: Multifaceted Evaluation of EV Drive Motor Shaft Produced by Radial Forging; Evaluation of EV Drive Motor Shaft by Radial Forging Process - Confirmation of Correlation between Hardness Distribution and Element Distribution; Measuring the Vickers Hardness on the Shanks of Hardened Screws in Accordance with ISO 18203 (JIS G 0559)
• Manuals: HMV-G31-FA/G-FA, HMV-G31-XY/G-XY Instruction Manual; HMV-G31/G21 Instruction Manual; Instruction Manual - Software Installation

Applications

• Quality control and R&D hardness measurement of forged and machined components, including EV drive motor shafts produced by radial forging.
• Correlation studies between hardness distribution and element/compositional mapping in metallurgical evaluation.
• Conformance testing such as measuring Vickers hardness on screw shanks per ISO 18203 / JIS G 0559.

Technical specifications

• Product type: Micro Vickers Hardness Tester (HMV-G Series), models include G31, G21, FA and XY variants.
• Optical system: built-in CCD camera for automatic length measurement (G31); optional color camera; manual optical head available.
• Measurement capabilities: standardized automatic length measurement and automatic reading for Vickers hardness evaluation.
• Automation options: fully automated FA machines with electrically driven revolver and electrically driven XYZ; electric micrometer-equipped XY stage; automatic full-sample image and edge recognition (G31-FA).
• Software: dedicated PC software with guided main sequence; software installation manual provided.
• Documentation: brochures, application notes and instruction manuals available for download.
