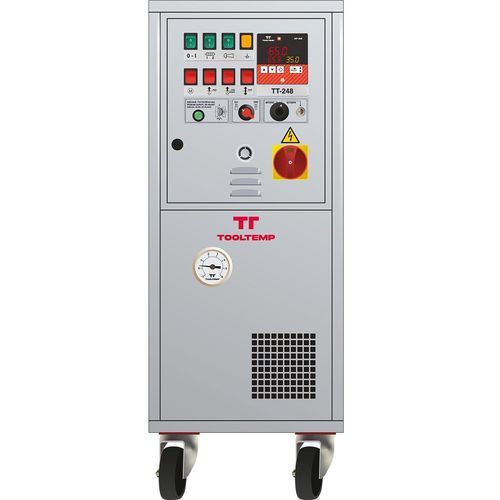

Digital temperature control unit CLASSIC Oil TT-248visualcirculating oiloil
Add to favorites
Compare this product
Characteristics
- Display
- digital, visual
- Type
- circulating oil, oil
- Protection level
- standard, robust
- Use
- heating
- Other characteristics
- 4-20 mA, safety, with audible alarm, with visual alarm, with control/safety thermostat
Description
The powerful temperature control unit CLASSIC Oil TT-248 from the robust and time-tested CLASSIC product line is designed for operation with oil and impresses with its user-friendliness and reliability.
Functions
Construction method
Safety devices
Controller
Applications
Characteristics / Technical Specifications
Functions
- Self-optimizing temperature controller with temperature display 1/10°C – steps
- Display in °C or °F and l/min or gal/min
- Digital flow display and monitoring
- Automatic temperature control
- Switchover for temperature control on the mould
- Pressure display
- Automatic mould drainage
- Leakstopper device – operation in pressure and vacuum mode possible
Construction method
- High temperature pump with mechanical seal
- Hot oil circuit with bypass which ensures the internal oil circulation when the valves are closed
- Limescale free heat exchanger
- No cracking of the oil thanks to special heating construction
- Expansion tank with drip pan
- Unit on castors
Safety devices
- Level control for dry run protection
- Electronic temperature limitation and monitoring in the controller
- Mechanical safety thermostats
- Visual and acoustic fault indications
- Integrated circuit breakers
- Main switch, transformer and motor protection switch
Controller
- Standard Controller MP-888: The MP-888 is a digital temperature controller that ensures precise temperature regulation. It displays the current and target temperature, monitors the circulation of the tempering medium, and triggers an alarm in case of flow rate drop. The digital temperature controller can be operated in °F or °C and features analogue interfaces 0-5 V, 0-10 V, and 4-20 mA as standard.
Applications
- Die casting
- Plastics
- Pharmaceutical & chemicals
- Extrusion
- Rubber
- Food
- Wood
- Laminating, Printing & Textile
Characteristics / Technical Specifications
- Product line: CLASSIC
- Model: Oil TT-248
- Heating capacity: 8 kW
- Medium: Oil
- Digital temperature controller: MP-888
- Display: °C/°F, l/min or gal/min
- Automatic temperature control and mould drainage
- High temperature pump with mechanical seal
- Hot oil circuit with bypass
- Limescale free heat exchanger
- Expansion tank with drip pan
- Unit on castors
- Multiple safety devices including dry run protection, electronic and mechanical temperature limitation, visual/acoustic fault indications, circuit breakers, main switch, transformer and motor protection switch
