- VALSTEAM ADCA Engineering S.A.

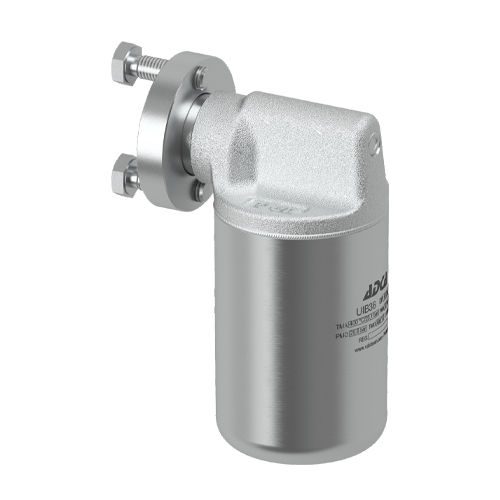

Condensate trap UIB36 seriessteamautomaticthermostatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam
- Operational mode
- automatic
- Type
- thermostatic
- Other characteristics
- compact
- Operating pressure
Max.: 27 bar
(391.6 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 610 kg/h
(1,345 lb/h)Min.: 130 kg/h
(287 lb/h)- Operating temperature
Max.: 400 °C
(752 °F)Min.: 0 °C
(32 °F)
Description
The UniADCA UIB36 series inverted bucket steam traps, completely in stainless steel, are maintenance free and sealed. These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment. These traps fit the UCX universal connectors and CTS4U compact stations.
MAIN FEATURES Sealed, non-maintainable. Two bolt swivel connector. Intermittent discharge. Discharges condensate at steam temperature.
Catalogs
UIB36
3 Pages
