- VALSTEAM ADCA Engineering S.A.

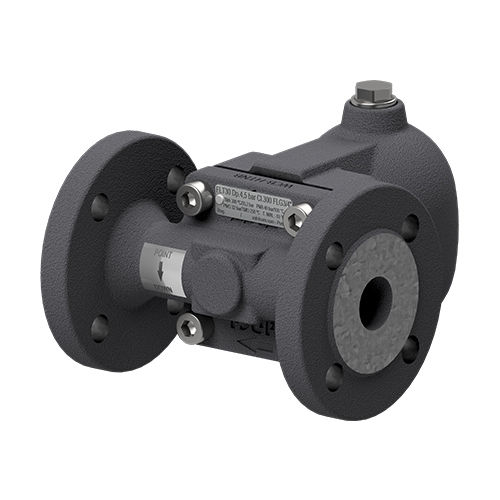

Air trap FLT30condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- float
- Operating pressure
Max.: 32 bar
(464.12 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 595 kg/h
(1,312 lb/h)Min.: 70 kg/h
(154 lb/h)- Operating temperature
Max.: 250 °C
(482 °F)Min.: 0 °C
(32 °F)
Description
The FLT30 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer.
Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential.
MATERIAL:
Carbon steel
SIZES:
1/2” to 1” – DN 15 to DN 25
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11
Catalogs
FLT30
5 Pages
