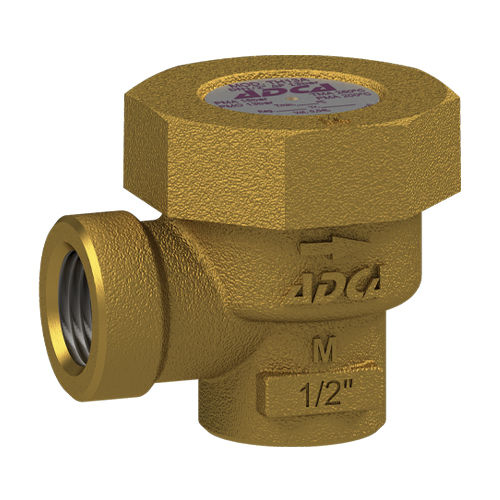

Air trap TH13Acondensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- thermostatic
- Other characteristics
- compact
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 13 bar
(188.55 psi)- Discharge capacity
Min.: 45 kg/h
(99 lb/h)Max.: 360 kg/h
(794 lb/h)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 200 °C
(392 °F)
Description
The ADCA TH13A series of thermostatic steam traps and air vents are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. Their compact design with angled connections makes them ideal for air venting applications. MAIN FEATURES Modulating discharge. Discharges condensate close to steam saturation temperature. Thermostats for different sub coolings (5 to 30 ºC). Excellent air discharge. Simple and compact design. Built-in strainer.
CONNECTIONS:
Threaded ISO 7 Rp or NPT
Catalogs
TH13A
1 Pages
