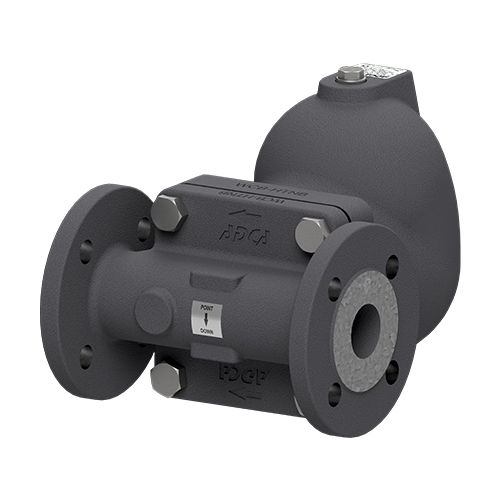

Air trap FLT37condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- float
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 32 bar
(464.12 psi)- Discharge capacity
Min.: 950 kg/h
(2,094 lb/h)Max.: 7,300 kg/h
(16,094 lb/h)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 250 °C
(482 °F)
Description
The ADCA FLT37 is a series of float and thermostatic steam traps with integral air vent designed for modulating discharge of condensate, ensuring maximum system heat transfer. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous discharge is essential and high flow capacities are involved. MAIN FEATURES Modulating discharge of condensate at steam temperature. Unaffected by sudden or wide load and pressure variations. No backing-up with condensate. Excellent air discharge through its integrated air vent. Flow direction can be easily changed by repositioning the body in relation to the mechanism and cover.
SIZES:
11/2” to 2” – DN 40 to DN 50
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11
Catalogs
FLT37
5 Pages
Other VALSTEAM ADCA Engineering S.A. products

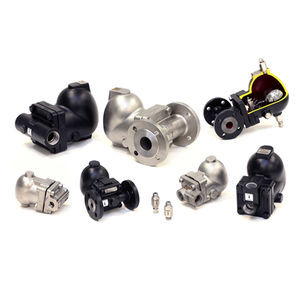

ADCA | Steam Traps
