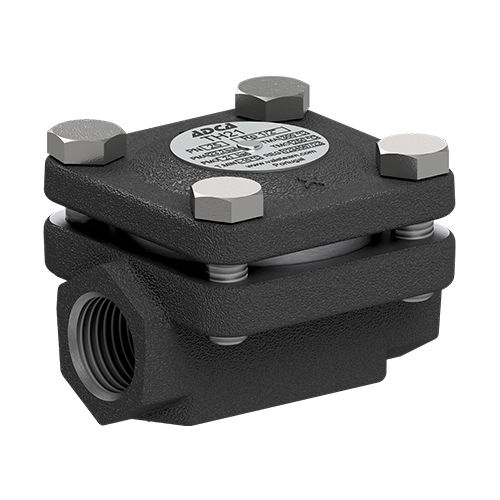

Air trap TH21condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 21 bar
(304.58 psi)- Discharge capacity
Min.: 45 kg/h
(99 lb/h)Max.: 795 kg/h
(1,753 lb/h)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 250 °C
(482 °F)
Description
The ADCA TH21 series thermostatic steam traps and air vents are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment. MAIN FEATURES Modulating discharge. Discharges condensate close to steam saturation temperature. Thermostats for different sub coolings (5 to 30 ºC). Excellent air discharge. Operates with moderate superheated steam. Built-in strainer.
SIZES:
1/2” – DN 15
CONNECTIONS:
Threaded ISO 7 Rp or NPT
Flanged EN PN 25
Flanged ASME Class 150
Socket weld (SW) ASME 16.11
Catalogs
TH21
2 Pages
