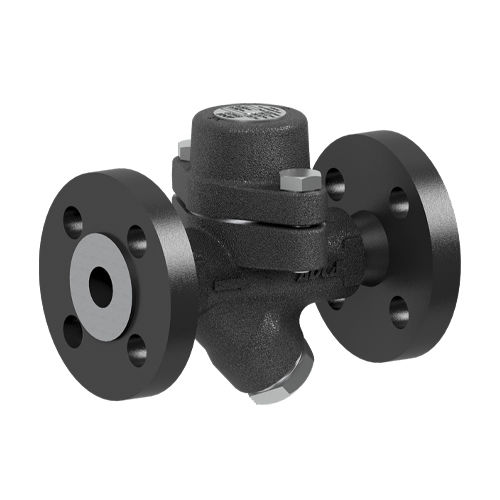

Air trap BM20

condensatewatersteam

The BM20 is a series of robust and efficient bimetallic steam traps and air vents. These steam traps are recommended for steam process applications where sensible heat can be recovered, such as steam tracing lines, drip points, storage tank coils and steam air venting. MAIN FEATURES Modulating discharge. Discharges condensate below steam saturation temperature. Excellent air discharge. Operates with superheated steam. Unaffected by water hammer and vibrations. Built-in strainer. OPTIONS: Blowdown valve. USE: Saturated and superheated steam. AVAILABLE MODELS: BM20 – carbon steel. SIZES: 1/2" to 1"; DN 15 to DN 25. CONNECTIONS: Female threaded ISO 7 Rp or NPT. Flanged EN 1092-1 PN 40. Flanged ASME B16.5 Class 150 or 300. Socket weld (SW) ASME B16.11. Butt weld (BW) ASME B16.25 on request. INSTALLATION: Horizontal installation is recommended, but can be installed in any position. See IMI – Installation and maintenance instructions.
